Description

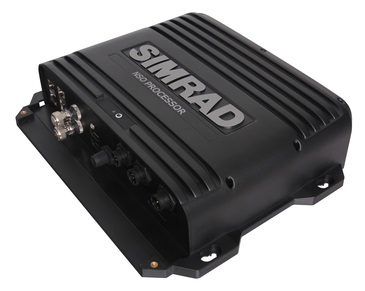

Simrad NSO evo3S MPU Only
Model: 000-15100-001
- Large-Screen Navigation System
- Multi-TouchSensible (with compatible display)
- Dual Independent Video Output
- Full HD Video
- Performance Module compatibility
- Cartography Choice
- Smaller, lighter design
- Quad-Core Processing Power
- Independent HDMI output ports allow different setups on each display
- 2 x Quad core processors
- Dedicated processor per monitor gives superior speed and chart draw performance
- Control both NSO evo3S MPU monitors direct from your Ipad or Android Tablet.
- Multi zoom touch gestures
- Naviconics Depth Highlight range
- Naviconics shallow water highlight
- AIS Sarts
- Fusion Link Audio Device Support
- Grib Weather
- Flir Camera integration
- GS25 Antenna Configuration
Specifications
| Mechanical / Environmental | |
| Casing | ABS Plastic |
| Operating Temp | -15°C to +55°C |
| water ingress | IPx2 |
| Weight | 1060g |
| dimensions (overall) | 281mm (W) x 232mm (H) x 65.5mm (D) |
| Electrical | |
| Operating voltage | 9 – 31.2 V DC |
| Power consumption | 45W (Max) |
| Low power standby mode | yes |
| Protection | reverse polarity and temporary over-voltage to 36V |
| Alarm output current | capable of driving 10A relay coil |
| Processor | iMX61 quad core |
| RAM | DDR3 1GB |
| Storage | 8GB Flash |
| Conformity | CE, C-Tick, HDMI |
| Interfaces | |
| ethernet | 3 ports total – 1 & 2 are PoE (RJ45 socket) |
| NMEA 2000 | 1 port on rear (Micro-C male) |
| Video input | 2 ports on rear (BNC female. NTCS or PAL format) |
| Video output | 1024×768 (XGA 4:3), 1280×720 (HD 16:9), |
| USB | mass storage, keyboard and mouse (Type A socket) |
| SD | 32GB (Full size SD card socket) |
| NMEA 0183 baud rate | 4800, 9600, 19200, & 38400 (via proprietary cable) |
| NMEA 0183 via RS232 | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| charting support | Navionics, CMAP, Insight, NV Charts on SD |
What’s in the Box:
- NSO evo3S MPU
- Power Cable
- RJ45-Yellow Round Ethernet adapter cable RJ45M / 5PinF
- NSO evo2 NMEA0183/Touch Monitor serial cable 2 m (6.5 ft) Eight core cable
- N2KEXT-6RD – 1.82 m (6-ft) NMEA 2000® cable
- N2K-PWR-RD – NMEA 2000® power cable. Includes power cable and 1 x T connector
- TR-120-KIT – Set of 1 male and 1 female NMEA 2000® terminators
- N2K-T-RD – Micro-C T-connector for connection of an additional network device x 2
- NSO evo2 Installation Kit
- Documentation
