Description

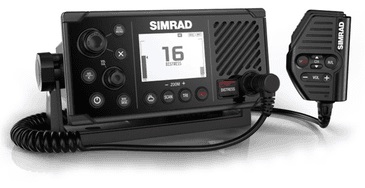

Simrad RS40 VHF AIS-RX
Model: 000-14470-001
- Simrad RS40 Replaces the current RS35 mid level VHF, updated to comply with EN 301 025 (v2.2.1)
- New front mountable design for easy installation
- Low profile design to align with style of Simrad MFD’s
- Seamless integration with a wider Simrad system through NMEA 2000 and 0183
- Built in AIS Receiver
- Large screen with intuitive user interface
- Optional wireless handsets with inductive charging
Specifications
| Temperature range | -15 to +55°C (+5 to +131°F) |
| Waterproof | IPX7 |
| Normal Working Voltage | +13.6 V DC |
| Minimum operating Voltage | ≤10 V DC |
| Low battery detect Voltage | 10.5 ± 0.5 V DC |
| Over Voltage Protection | >15.8 ± 0.5 V DC |
| Hailer Audio Power Out | 30 W |
| Current Drain RX Max Audio Power | ≤1.5 A |
| Current Drain Stand-By RX | ≤0.45 A |
| Current Drain At 12V DC : Hi Power TX | ≤6 A |
| Current Drain At 12V DC : Lo Power TX | ≤1.5 A |
| Frequency Range: Transmit | 156.025 ~ 157.425 MHz |
| Frequency Range: Receive | 156.050 ~ 163.275 MHz |
| Channels | PLL |
| Modulation | FM(16KOG3E) DSC(16K0G2B) |
| Channel Spacing | 25 KHz |
| Frequency Stability | ± 5 PPM |
| Digital Selectivity Calling (DSC) | Class D |
| LCD Display | FSTN 256×160 Pixels |
| AIS Max Targets | 150 |
| Intermediate Frequency : 1st | 38.85/21.7 MHz |
| Intermediate Frequency : 2nd | 450 KHz |
| Sensitivity : 12dB SINAD | ≤-6 dBuV(EMF) |
| Squelch Sensitivity: at tight | ≤ 6 dBuV(EMF) |
| Spurious Response Rejection Ratio | ≥70 Db |
| Adjacent Channel Selectivity | ≥70 dB |
| Intermodulation Response | ≥68 dB |
| S/N at 3KHz Dev. | ≥40 dB |
| Audio Output Power At THD 10% | ≥2.5 W |
| Audio Distortion | ≤10 % |
| Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz |
| Current Drain Max Audio Power | ≤1.5 A |
| Current Drain Stand-By | ≤0.45 A |
| 2ND RX Sensitivity For 12dB SINAD | ≤ 0 dBuV(EMF) |
| 2ND RX bit error ratio@-107dBm | ≤ 10-2 |
| Frequency error | ≤±1.5KHz KHz |
| RF Power : Hi | 23 ± 2 W |
| RF Power : Lo | 0.8 ± 0.2 W |
| Maximum Deviation | ≤± 5 KHz |
| S/N at 3KHz Dev. | ≥40 dB |
| Modulation Distortion | ±3KHz ≤10 % |
| Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz dB |
| Spurious/Harmonic Emissions: Hi/LO | ≤0.25 uW |
| Modulation Sensitivity | ≤15 mV |
| DSC TX deviation at 1.3K | 2.6±0.26 KHz |
| DSC TX deviation at 2.1K | 4.2±0.42 KHz |
| ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
| ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
