Description

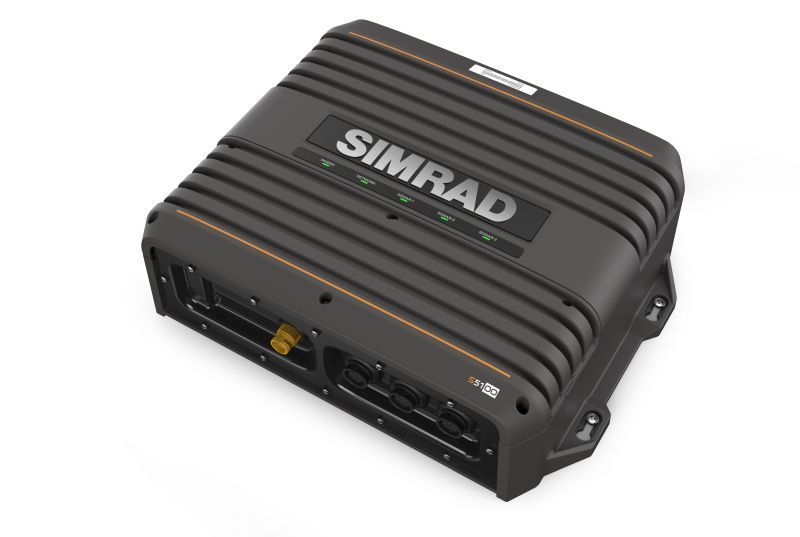

Simrad S5100 High-Performance CHIRP Sonar Module
Model: 000-13260-001
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders
The S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking. Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.
Specifications
| Networking | Ethernet 1 X 100 Mbps |
| Mounting type | Bulkhead or desk mount |
| Interface | Ethernet 1 x 100 Mbps |
| Recommended Fuse Rating | 5A |
| Power Consumption, typical | 85W Max |
| Power Consumption, min. | 23 W |
| Supply Voltage | 12 or 24 (10.4 – 31.2) |
| Dimensions | 340 W x 100 H x 250 D mm excluding connectors (378 mm D including connectors) |
What’s in the Box:
- S5100 Module
- Powercord
- 4.5m Ethernet cable
- 7 TO 9 Pin Adapter Cable X 3
