Description

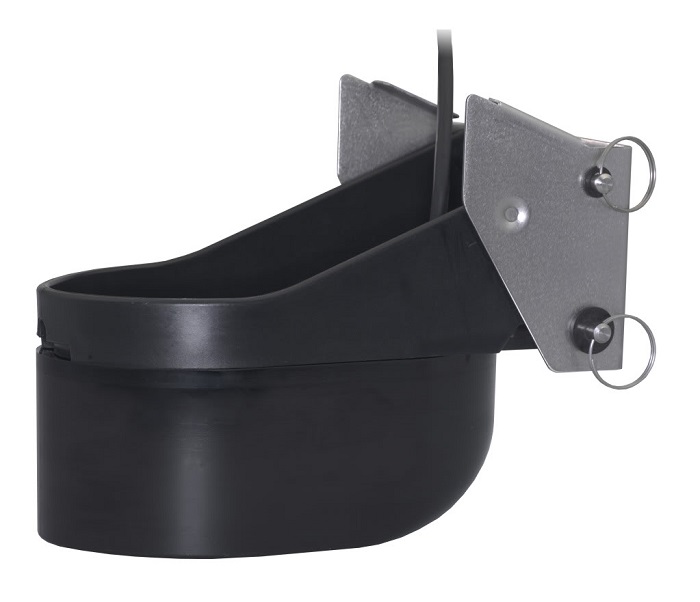

Simrad TM260 Plastic transom-mount. 50/200Khz with diplexer. 9-pin
Model: 000-13904-001
Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Specifications
Frequency | 50/200kHz |
Power rating | 1 kW |
Speed sensor | No |
Temperature sensor | Yes |
Mounting style | Transom mount |
Elements | 8 |
Beam width @ -3db | 19 (50 kHz) 6 (200 kHz) |
Cable length | 10 meter |
Connector | 9-pin black |
