Simrad Xsonic SS260 50/200KHZ 9-PIN Connector Depth/Temp


$1329.00 $1110.22

1 in stock
Qty :

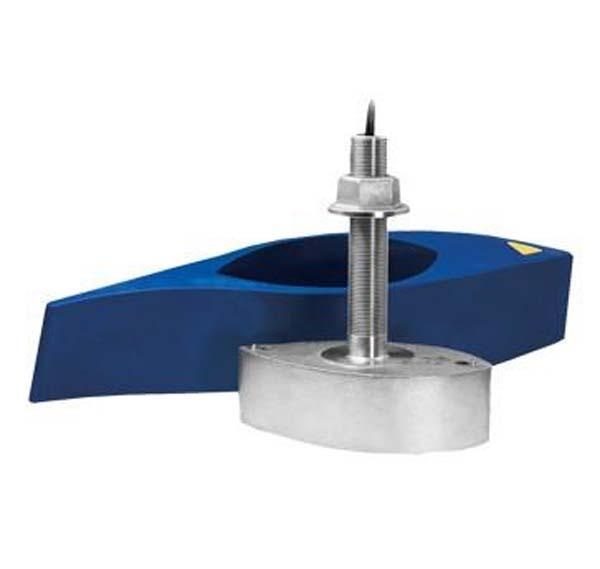

Simrad SS260 Xsonic 50/200Khz 1kw Stainless Steel Thru Hull

Model: 000-13783-001

  • The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.
  • Excellent for deep water bottom and structure fishing up to 500m/1640ft.
  • Calculate depth and temperature from one compact sensor.
  • Provides extremely accurate echosounding data, even at speeds of over 30 knots.
  • The narrow, 6° beam 200 kHz ceramic offers excellent resolution and and crisp image detail for bottom fishing. The seven-element 50 kHz array has a wider 19° beam for deepr blue-water fishing.
  • Built to withstand the environment.

The SS260 is a stainless steel, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for fishing in shallow, medium and deep waters.


Frequency 50/200 kHz
Power rating 1kw
Speed sensor no
Temperature sensor Yes
Mounting style Stainless Steel Thru-hull
Beamwidth 50 kHz—19°, 200 kHz—6°
Cable length 10 meter
Connector 9-pin connector

What’s in the Box:

  • SS260 50/200Khz
  • Fairing block

Additional information

Weight 24.00 lbs
Model Number 000-13783-001
UPC 9420024161944
