Description

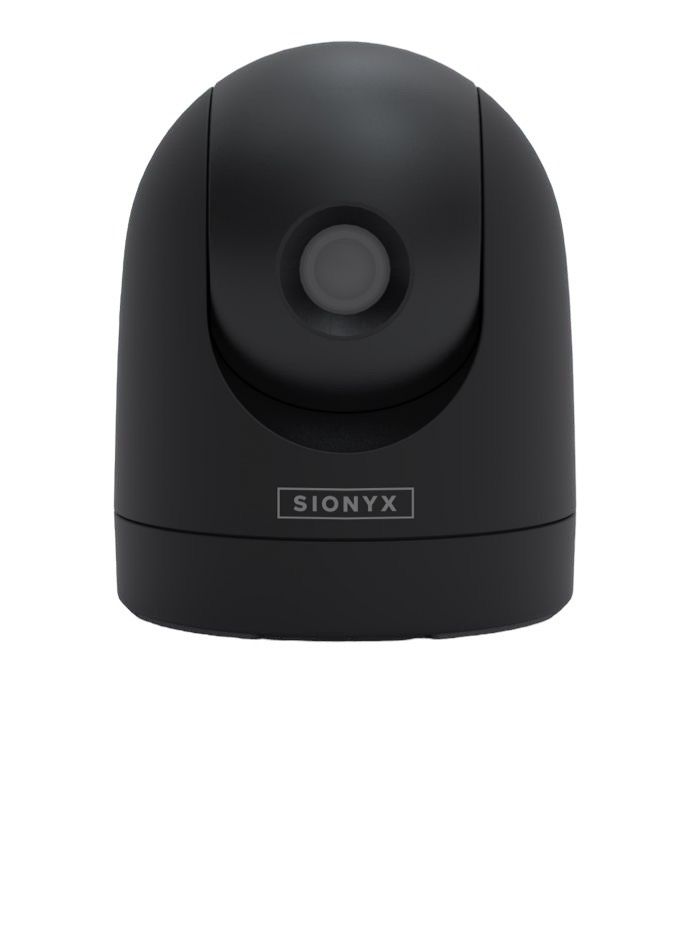

Sionyx Nightwave Ultra Low-light Marine Camera – Black Hosuing
Model: C014900
- <1 millilux moonless starlight night vision
- 44 degree horizontal / 25 degree vertical fields of view
- Rugged and water-resistant (IP67 rated)
- Connect directly to a major brand MFD
- Flexible installation – Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware or Temporarily mount with a 1/4″-20 mount interface for use with standard mounts
- May be mounted upside down under a t-top or lip of a boat top.
- 12Vdc power (fused)
- NTSC/PAL Analog video connection (SMA, BNC, or RCA)
- Manual vertical tilt adjustment
Nightwave is an ultra low-light marine camera built around SIONYX’s patented Black Silicon BSI CMOS sensor. It allows all levels of mariners to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras — navigating safely, avoiding collisions, and maximizing time on the water.
Featuring <1 millilux moonless starlight sensitivity, with Nightwave you will see well beyond human eyesight and detect man-sized objects at 150 meters. The 44 field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 3 ft for 30 minutes, you can safely use Nightwave in inclement weather conditions.
With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analog video output, displaying clear color digital night vision.
Important note: Nightwave should be placed approximately 3 feet in front of any radar.
Get Mobile with your Nightwave. The SIONYX Nightwave App allows your mobile device to remotely change the settings on your Nightwave. Availble on The App Store.
Specifications
| CAMERA | |
| SENSOR TYPE | XQE1350 BSI CMOS |
| RESOLUTION | 1280 X 1024 |
| FRAME RATE | 60 HZ |
| HORIZONTAL FOV | 44° |
| VISIBLE SPECTRUM | 400-1200NM |
| FOCUS RANGE | 10M TO INFINITY |
| LENS | 16MM F/1.4 |
| SYSTEM | |
| VIDEO OUT | NTSC |
| VIDEO CONNECTION | SMA / BNC/ RCA |
| WIRELESS COMMUNICATIONS | WIFI + BLUETOOTH |
| POWER IN | 12V DC |
| POWER CONNECTION | TINNED COPPER WIRE |
| ENVIRONMENTAL | |
| INGRESS PROTECTION | IP67 WATER/DUST RESISTANT |
| SHOCK & VIBRATION | IEC60945 V15G , H:9G] , IK08 |
| OPERATING TEMPERATURE | -20°C TO +50°C |
| STORAGE TEMPERATURE | -20°C TO +80°C |
| RANGE PERFORMANCE | |
| DETECT MAN-SIZED OBJECT | 150m Clear weather 1/4 moon |
| PHYSICAL | |
| WEIGHT | 870 G [1.9 LBS] |
| DIMENSIONS | 127 X 127 X 152 MM [5 X 5 X 6 IN] |
| MOUNTING OPTIONS | TRIPOD OR RAMMOUNT |
| MATERIAL | MATERIAL UV RESISTANT POLYCARBONATE |
What’s in the Box:
- SIONYX Nightwave Ultra Low-Light Marine Camera (CRV-500C) – Black Housing
- Power/Video Cable
- BNC to RCA adapter
- 2A inline fuse
- Removable Mounting Base
- Mounting Hardware
- Mounting Gasket
- Mounting Template
