Description

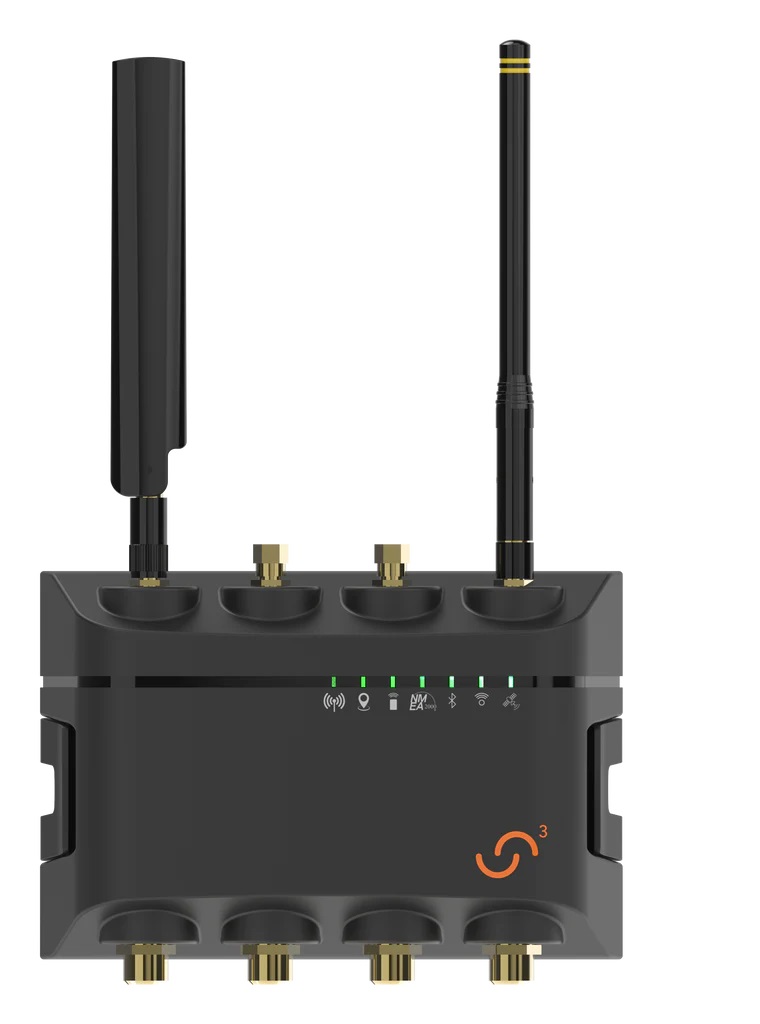

Siren Marine Siren3 Pro Main Device
Model: SM-S3P-917
- The Siren 3 Pro requires a cellular subscription plan to send unlimited data between the device and the Siren Connected Boat App.
- A SirenSat device and subscription plan are required to maintain connectivity for vessels traveling to the Bahamas or other areas without cellular coverage.
The Siren 3 Pro is the most advanced Main Device we offer. Together with the Siren Connected Boat App, our Smart Boat Monitoring System puts your boat in the palm of your hand 24/7.
Install the Siren 3 Pro on your boat to monitor and track multiple critical systems such as battery voltage, bilge pump activity, water levels, shore power status, engine performance, temperature, location & more right on the App. Some monitoring capabilities require a Siren 3 Series Wireless Sensor or Wired Sensor.
Battery Monitoring: Monitor your boat’s battery & receive alerts if voltage is low
GPS Position/Geofence: Track boat’s location & receive alerts on boat movement
NMEA 2000: Best-in-class NMEA 2000 marine electronics backbone connectivity
Digital Switching: Remotely control lights, refrigerator and more
LTE-M (4G/5G): The latest cellular technology connects you to your boat *Based on 4G/5G LTE-M availability
Specifications
| Physical Dimensions | 6 in x 4.5 in x 2 in 152 mm x 113 mm x 50 mm |
| Weight | 1lb .5kg |
| Operating Voltage | 9-30 VDC |
| Internal Battery Type | 3000mAh Lithium Polymer Battery |
| Internal Battery Backup Power | Up to 48 Hours Backup Power |
| Firmware Upgradeability | Over the Air (OTA) for both Siren 3 Pro and wireless sensors |
| Cellular | External Antenna, 4G/5G CAT-M1, with fall back to NB-IoT and EGPRS |
| Wireless | External Antenna, Sub-GHz |
| NMEA 2000 | CAN Bus 1, M12 (5 Pin) |
| Application-Dependent Protocol (ex. J1939) | CAN Bus 2, M12 (5 Pin) |
| Satellite Modem | RS-232, M12 (12 Pin) Wiring Cable #2 |
| Expansion Bus | RS-422. M12 (12 Pin) Wiring Cable #2 |
| Mounting | Snap-in bracket with (4) screws provided for mounting |
| Positioning | Internal Antenna, GNSS, GPS/GLONASS with SBAS, (External antenna option available) |
| Connectivity | Interface cable with mating connector of 1m length provided for wired inputs and outputs with 24 AWG conductors. |
