Description

Features Powerful 1 kW Output, with 10.4-inch LCD Display, Digital Signal Processing and Digital Filtering

• Professional-grade color LCD echo sounder with advanced Digital Signal Processing and Digital Filtering for superior bottom-reading performance and clearer target images in all depths.

• Provides both professional and serious recreational fishermen with a range of important advantages, including depth range scales from 10 to 6,000 feet, superior clutter suppression and signal-to-noise ratio, and a faster transmission rate for enhanced shallow-water performance. Its digital design helps the CVS-1410 detect fish close to the bottom in depths never before possible when using a high-frequency transducer. In fact, the 1kW dual-frequency (50/200kHz) CVS-1410 performs as well as or better than many 2kW and 3kW sounders, making it an affordable professional-grade alternative for any vessel.

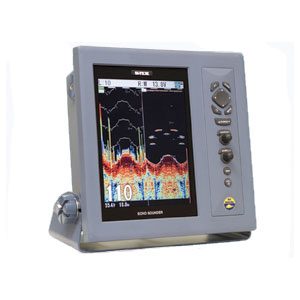

• Bottom detail and fish targets are presented on the CVS-1410’s 10.4-inch color TFT LCD display with 640X480 pixel (VGA) resolution. SI-TEX offers the CVS-1410 with several different Transducer choices, allowing the boater to choose the ideal option for his preferred target fish, fishing methods and geographic region.

• Whichever version you choose, the CVS-1410 provides a range of useful and unique features designed to enhance fishing success. These include SI-TEX’s Detection Area Display, which indicates with numbers and graphic beam angle illustrations the bottom area covered at high and low frequencies. This information is important for boaters to determine the location of fish on the display in relation to the vessel. SI-TEX’s exclusive Sona-Tone™ feature provides further help identifying what’s under the boat with differing audible alerts for fish and schools of fish.

• The CVS-1410 also offers an Image storage feature that holds up to 10 "Snap-Shot" screen display images in its built-in memory for later recall with the touch of button. To help skippers return quickly to fishing hot spots or other previously saved positions, the CVS-1410 offers an easy-to-understand back track navigation display (with optional GPS input) right on the sounder screen. Two programmable Function keys can be customized for quick and easy access to any menu item without having to open up the menu.

• While the new CVS-1410 is packed with advanced features, it also offers an Auto Function mode that makes it easy for anyone ? even the novice user ? to achieve ?Hands Free™ professional results.

Output Frequency50kHz/200kHz

Output Method 50kHz/200kHz

Output Method Single or alternate

Output Power 1kW

Output Firing Times 3000 times/minute at maximum

Display Normal, Dual frequency, Zoom, NAV (Simple plotter, compass), A scope

Range 2.5m to 2000m; 8ft –‐ 6500ft max depth

Range unit m, fm, l.fm, ft

Shift step 1m, 10m, 1/8, 1/4,; 3ft, 30ft

Zoom Range 2.5m to  200m; 8ft –‐ 650ft

Image Speed 9 steps & stop

Function registration Image speed, A scope, Shift Interference rejection, Color  rejection, Noise rejection,  Zoom  range,  Zoom  start, White line, Background color, etc

Color Tone Monochrome, 9 color, 16 color, 64 color

Input data format & sentences NMEA0183 Ver.1.5/2.0/3.0; GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA

Output data format & sentences NMEA0183 Ver 2.0 (DBT only Ver.1.5); DBT, DPT, GGA, GLL, HDT, MTW,  MWV, RMC, TLL, VHW, VTG, ZDA

Power Supply 10.8 to 31.2 VDC

Power Consumption 30 W or less (at 24V DC)

Range of Operating Temperature –‐15 C to +55 C

Store Temperature –‐30 to +70 C

Water Protection IPX5

Size of Cabinet 13″ x 12.5″ x 6.8″

Weight 16.4 lbs
