Description

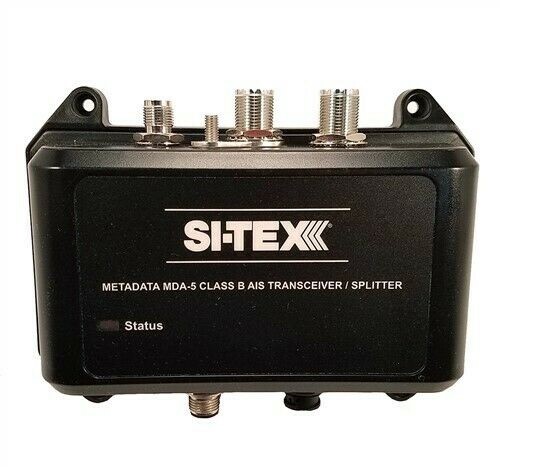

Sitex MDA-5 Class B+ SOTDMA AIS Transceiver NO Wifi
Model: MDA-5H
- The MDA-5 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
- 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
- SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.
- Integrated zero loss VHF antenna splitter — no second antenna needed
- Water Proof certified to IPX7
- NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
- Built-In GPS & GLONASS satellite navigation receiver
- 2 Year Warranty
- Dual Receivers decodes all DSC & AIS messages, including MOB & SART
- Ultra-power efficient
- IEC-62287-2, FCC and USCG certified
Specifications
| Transmitter Output Power | 5 Watts |
| VHF Antenna Connector | SO-239 UHF |
| GPS Antenna Connector | TNC |
| Frequency Range | 156.025 – 162.025 Mhz |
| Input Voltage | 9.6-31.2 Vdc |
| Current Draw | 220mA Average Power Consumption |
| Operating Temperature Range | -25°C – +55°C |
| Ingress Protection | IP67 |
| Dimensions – Transceiver | 6.8″ W x 5.0″ H x 2.0″ D |
What’s in the Box:
- MDA-5H Transceiver
- Commercial Grade External GPS Antenna with Coax Cable
- Mounting hardware
- Power & Data Interface cable
- VHF Radio Connection cable
- Product information DVD, with ProAIS2 Software for Programming & Troubleshooting
- User Manual
- Quick Start Guide
