Description

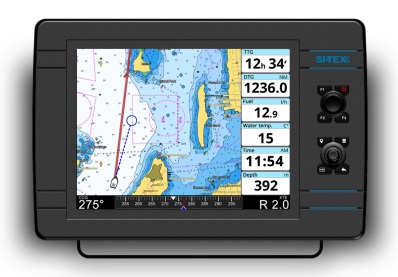

Sitex NAVPRO1200 12″ Plotter
Model: NAVPRO1200
- 12" Hi-Res. Hybrid Touch Screen Display
- Heavy Duty Yoke mount for Bulkhead or Overhead Mounting
- NMEA-0183 & NMEA2000 Interfacing
- WIFI Interface
- Automatic Software Updates when in WIFI Coverage
- Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.
- Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.
- C-Map 4D Cartography — comes bundled with a US Coastal & Rivers Continental 4D card in the box
- Optional dedicated Remote Control Available
- Designed for easy flush mount without any special kit needed
- Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna
- New User interface makes the unit very easy to operate and navigate with
- Full AIS Integration when interfaced to an AIS Unit
The NavPro 1200 MFDs offer optional high-resolution WI-FI radar that makes it easy to install and rig. SI-TEX’s 4kW, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.
In addition to the included Polaris Charts, SI-TEX’s NavPro Series is also compatible with optional Navionics Platinum+ cartography.
Specifications
| LCD Display Size | 12.0" |
| Display Brightness | 1250 NITS |
| Display Resolution | 1024×768 |
| Touch Screen | Yes, Capacitive Multi-Touch |
| Keyboard Backlight | Yes |
| GPS Receiver | Built-In High Resolution 18Hz 72 Channel GPS/GLONASS |
| External GPS | Yes, optional via 6 pin Connector |
| Network Connections | NMEA-2000 (Optional Cable Required) Dual NMEA-0183 Input/Output Ports |
| WIFI Connection | Yes |
| Bluetooth Connection | Yes |
| Waterproof Rating | IPX6 |
| Operating Temperature Range | -10’C to +60’C |
| Warranty | 2 Year |
| Input Voltage | 10 to 35 VDC |
| Dimensions | 15.3" Wide x 10.9" High x 5.8" Deep |
What’s in the Box:
- NavPro 1200C Display Unit
- Polaris USA Chart Card
- Mounting Bracket
- Mounting Screws
- Combination Power Data Cord
- Sun Cover
- Installation & Operation manual
