Description

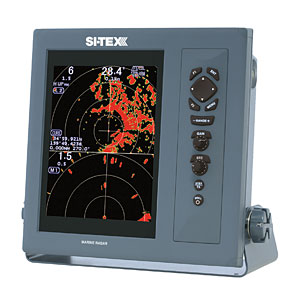

Si-Tex T2060A-4 10.4″ Display 6kW Open Array Radar with 4.5′ Antenna
Model: T2060A-4
- Dual-Speed antenna with 48-rpm capability for high speed/river operations
- Split-screen display of long- and short-range targets simultaneously
- True-Trail Function identifies moving targets
- Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing
- Standard AIS Interface module capable of tracking 200 targets*****
- Optional 50-target Automatic Tracking Aid (ATA).
Specifications
| Scanner | 4.5′ Open Array |
| Peak Power Output | 6kW |
| Output Frequency | 9410 +/- 30MHz |
| Beam Width | 1.8° Horzontal, 22° Vertical |
| Rotation | 24 or 48 RPM |
| Pulse width | .08, 0.15, 0.3, 0.5, 1 usec |
| IF Frequency | 60MHz |
| Range Accuracy | Better than 8m or 1% of range scale selected, whichever is greaer |
| Minimum Detecting Distance | 25m |
| Display Unit | |
| Size/Type | 10.4″ TFT Color LCD |
| Resolution | 480 x 640 |
| Display modes | Heads up, North up*, Course Up*, WPT up** |
| Dimensions | 12 19/32″ x12 19/32″ x 5 39/64″ |
| Power | 10.8 – 31.2vDC |
| Power Consumption | 110 watts or less |
| *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user. | |
| **Requires waypoint data input. | |
What’s in the Box:
- MRD-104 Display
- RB717A – Pedestal 6kW
- RW701A-04 – 4.5′ Antenna
- 242J159098A ?15M Cable
- DC Power Cable
- Quick Reference guide
- Operation manual
