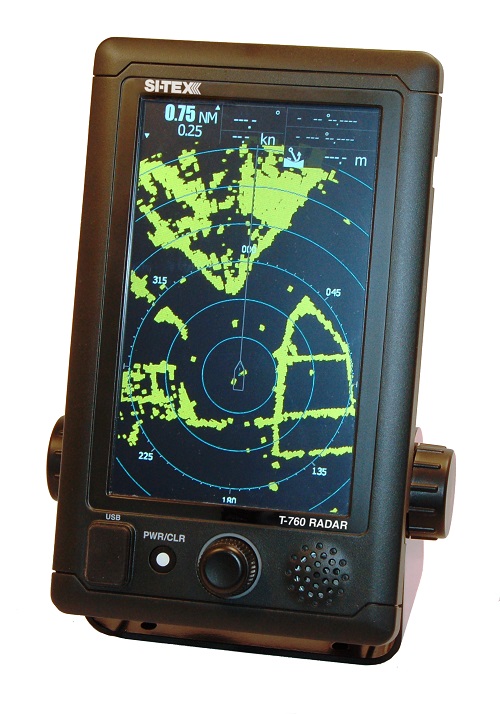

Description
- 7 inch color wide LCD display with TOUCH screen
- Hi-performance 4kW 1.5ft ( T-760 24NM)/2ft (T-761 48NM) radome scanner
- Easy operation with TOUCH and rotary encoder dial
- 50 Target AIS Tracking – Standard
- 10 Target MARPA – Standard
- Multi-Speed Antenna Rotation
- Optional Color RGB video output
| Model | Frequency | Output Poweer | Type | Scanner Size | Rotation Speed | Beam | Power |
| T-760 | X-band 9410 MHHz | 4kW | Radome | 450mm | 16/48 rpm | h: 5.2° v: 25° | DC12/24v -10/+30% aprox 50w |
| T-761 | 620mm | h:4.0°, v: 25° |
| Radar Performance | T-760 | T-761 |
| Maximum detection range | 24NM | 48NM |
| Range Scale | .0625 – 24nm | .0625 – 48NM |
| Range Resolution | Less than 30m | |
| Minimum detection range | Less than 40m | |
| Bearing accuracy | Less than 1 degree | |
|
Presentation |
||
| Screen Size | 7" wide 800×480 pixel | |
| Radar diameter | 90mm or more | |
| Anti Sea/Rain Clutter | Auto/Manual | |
| Trail indication | off, 15s, 30s, 1min, 2min, 3min, 6min, 10min,15min, 30min Contiuous | |
| Offcentering | 2/3 radius of PPI | |
|
Target tracking and AIS Function |
||
| Acquisition Mode | Auto/manual ( Auto New Target) | |
| ATA Trackign Target Capacity | 10 Targets | |
| Acquisition and trackign range | 20nm | |
| Vector Model and Length | True/Relative Vector, adjustable from 1 to 60min | |
| Guard Zone | 1 zone | |
| Target Data | True Bearing, Range, True Course, True Speed, CPA, TCPA | |
| Alarms | CPA/TCPA, New Target, Lost System | |
| Ais Target capacity | 50 targets | |
