Description

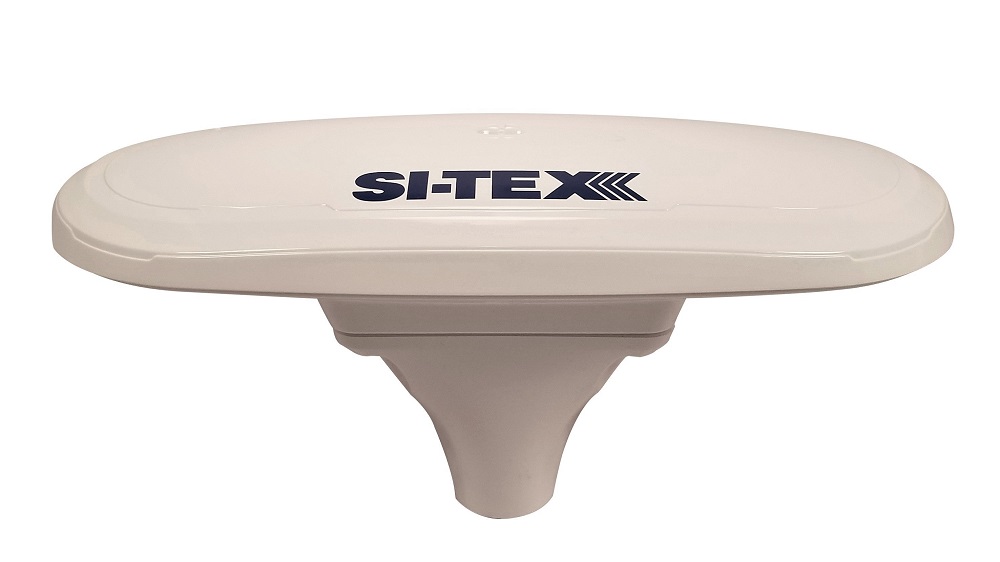

Si-Tex Vector V200 Satellite Compass – NMEA0183
Model: Vector200-0
- L1 GPS, GLONASS, Galileo, BeiDou, QZSS
- Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
- 0.75 degree heading accuracy in an amazingly small form factor
- Excellent in-band and out-of-band interference rejection
- Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
- Provides heading, positioning, heave, roll, and pitch
- Comes with 15 meter NMEA-0183 Cable
Experience superior navigation from the accurate heading and positioning performance available with the Vector™ V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere’s Atlas GNSS global correction service.
The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass – measuring only 35 cm in length – mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems
Specifications
| GNSS Sensor Specifications | |
| Receiver Type | Vector GNSS L1 Receiver |
| Signals Received | GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas |
| Channels | 424 |
| GPS Sensitivity | -142 dBm |
| SBAS Tracking | 2-channel, parallel tracking |
| Update Rate | 10 Hz standard, 20 Hz optional |
| Power | |
| Input Voltage | 6 to 36 VDC |
| Reverse Polarity Protection | Yes |
| Dimensions | |
| No Mount | 34.8 L x 15.8 W x 7.5 H (cm) |
| LP Flat Mount | 34.8 L x 15.8 W x 7.6 H (cm) |
| HP Flat Mount | 34.8 L x 15.8 W x 10.7 H (cm) |
| Pole Mount | 34.8 L x 15.8 W x 16.8 H (cm) |
