Description

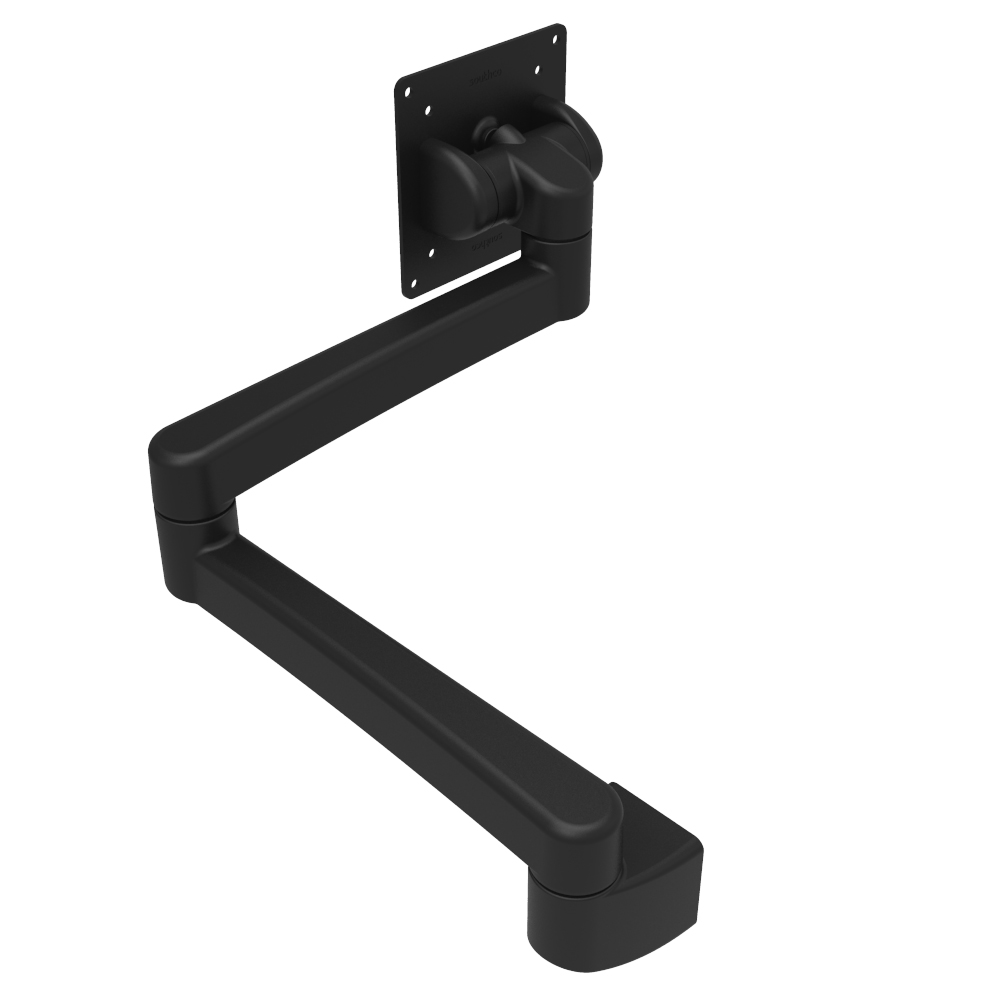

Tilt Head Assembly Tilt & Swivel Double Arm – Wall Mount – Black

Features:

• Wall mount, rear fastened with wire cut out
• Intuitive grab and move operation enhances the user experience
• No knobs or tools required to reposition the display
• Precise control of operating effort ensures ideal “feel” and eliminates “drift”
• Holds securely, even in applications with dynamic loading
• Consistent repeatable operation
• Fully enclosed for optimum cleanability
• Snap-on wire management cover
• Factory assembled and ready for use

Specifications:

• Material: Aluminum Alloy
• Finish: Powder Coat
• Color/Appearance: Black
• Locking Option: Non-Locking
• Display Motion: Tilt & Swivel, Double Arm
• Mounting Style: Wall Mount, Rear Fastened, With Wired Cutoff
• Tilt Torque – Forward: 1.130 nm (10.00 in-lbf)
• Tilt Torque – Reverse: 7.900 nm (69.92 in-lbf)
• Series: AV-D32
• Length: 450.000 mm (17.72″)
