Description

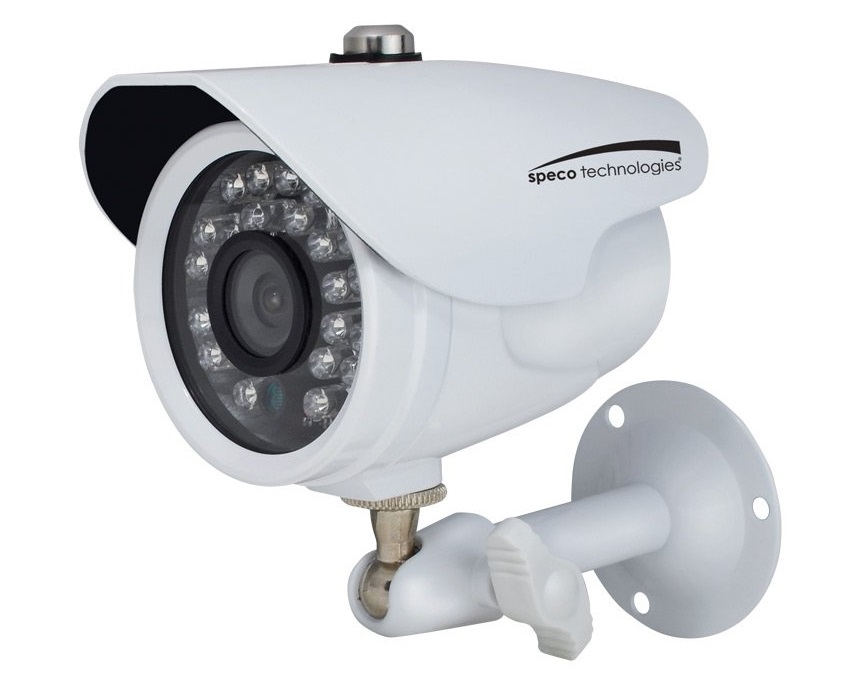

Speco CVC627MT HD-TVI 2MP Waterproof Marine Camera, 3.6mm Fixed Lens, White Housing
Model: CVC627MT
- 3.6mm fixed lens
- Full HD resolution over coax (HD-TVI)
- Full HD 1080p @ 30fps
- Great for marine applications
- Additional analog output for 960H
- Full OSD operation via UTC (TVI only)
- IP67 compliant, waterproof
- 12VDC / 24VAC dual voltage operation
- 5 year warranty
- Mirror image or flip image available in OSD menu
Specifications
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Resolution. | 1920 x 1080 |
| Minimum Illumination | 0 lux (IR LEDs on) |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Number of IR LEDs | 24 |
| IR Range | 65 ft. (depending on scene reflection) |
| Electronic Shutter | Auto / Manual (1/30 — 1/30,000 sec) |
| S/N Ratio | More than 50dB |
| Synchronization | Internal |
| Scanning System | 2:1 Interlaced |
| Video Output | 1Vp-p / 75 ohms |
| TV System | NTSC |
| Input Voltage | 12VDC / 24VAC (power supply not included) |
| Input Draw | 350mA (12VDC) / 300mA (24VAC) |
| Dimensions | 2.47" (W) x 2.74" (H) x 4.01" (L) |
What’s in the Box:
- Camera
- Mounting screws
- Mounting Bracket
- 10’ of power/video cable included
