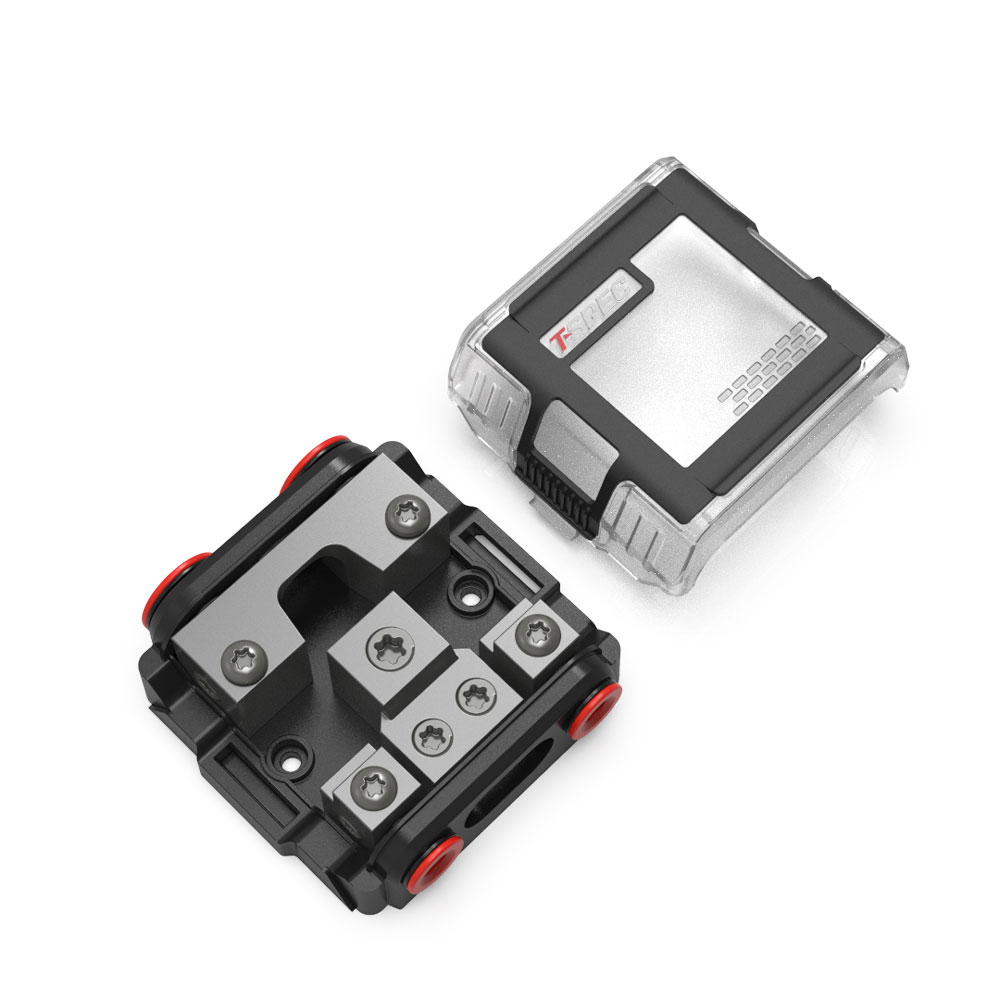

VPNB2 MANL 2 Position All-In-One Distribution Block with Cover
T-Spec designed VPNB2 distribution block to handle the high-current power and ground distribution for two (2) power sources, and protect them each with a mini-ANL fuse. This hefty little block distributes power from one (1) 1/0-gauge positive power cable to two (2) 4- to 8-gauge power leads, each routed through a mini-ANL fuse.
Then, the same block receives the amps’ two ground wires and combines them for a single 1/0-gauge ground cable.
Fuses sold separately.
- (2 positive) 1/0 to 4 AWG in to (2 positives) 4/8 AWG out
- (1 negative) 1/0 to 4 AWG in to (2 negatives) 4/8 AWG out
- TPE wrapped soft touch
- Dual sizes gasket set
- Solid brass construction
- Black nickel finish
- T20 Torx® screws
- Gate Lock technology
In the Box:
- Distribution block for both power and ground
- Plastic cover (attached)
- 2 Rubber grommets and sleeves on power inputs (installed)
- 2 Rubber grommets and sleeves on power outputs (installed)
*Sold as an Individual
