Description

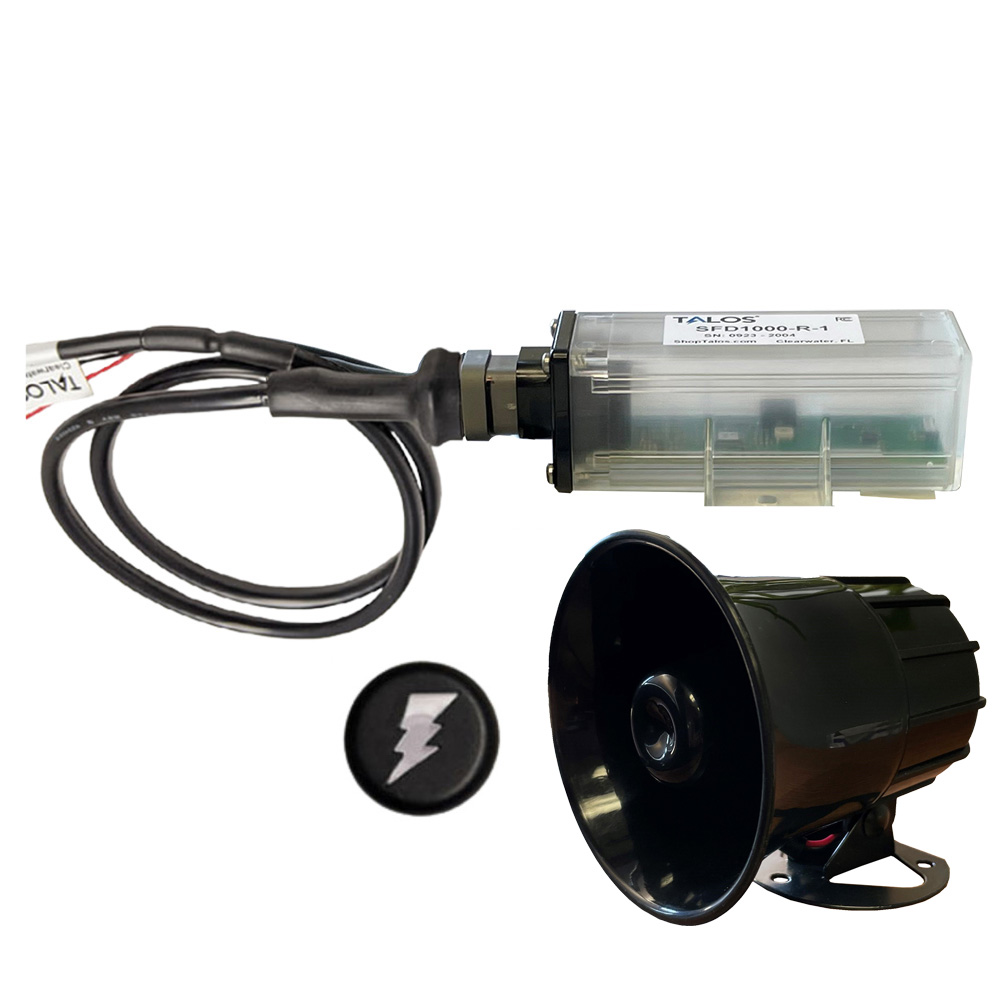

Remote Housing Lightning Detection System with 20' Cable & External Horn – Black Round Indicator & 45' Horn Cable
55% of lightning injuries & fatalities occur to outdoor workers.
Engineered for customized OEM applications, the SFD-1000-R utilizes a proprietary, patent-pending, compact design to detect and alert lightning strikes up to 25 miles away – increasing situational awareness and elevating safety levels.
Lightning can strike from 25 miles away, but thunder can only be heard from 10 miles away. This means lightning can strike even when the sky is blue and it appears no storm is in sight. Each year in the U.S., there are approximately 25 million cloud-to-ground lightning flashes, and about 300 people are struck by lightning causing death or permanent disability.
How do you stay aware of changing weather conditions?
The TALOS Remote Lightning Detector with external power horn provides extra loud audible alerts when lightning is approaching or departing by sensing the distance of the lightning strikes that are occurring in the area, making you aware of potentially life-threatening situations.
Features:
- Up to 25-mile detection range
- The same technology utilized in national weather stations
- In-cab visual and audible alerts. 3 different colors indicate the distance (approaching or departing) of the storm front:
- Green: 25 miles
- Blue: 16 miles
- Red: 6 miles
- 3 audible beeps when lightning is detected
- Flashes yellow once a minute when in active listening mode
- If lightning strikes multiple times in 1 second, all 3 colors will rotate indicating maximum danger
- Loud audible alerts via external horn
- TALOS alerts in real-time based on your exact location
- Compact design
- Easy to mount for a clean, finished look
- Low cost
- Lower power consumption
- High accuracy
- IP67 waterproof
- OEM tested and approved
- Reverse polarity protection
Technical Specifications:
- Operating temperature – -20 to 80°C (-4 to 176°F)
- Supply voltage – 6-30 VDC
- Current (listening mode) – 400 µA
- Current (detecting mode) – 4.5mA
- Housing size – 4.4" (L) x 1.5" (H) x 2.75" (W)
- Indicator cutout size – 3/4" dia.
- Horn size – 4.25" (L) x 4" (H) x 4" (W)
