Description

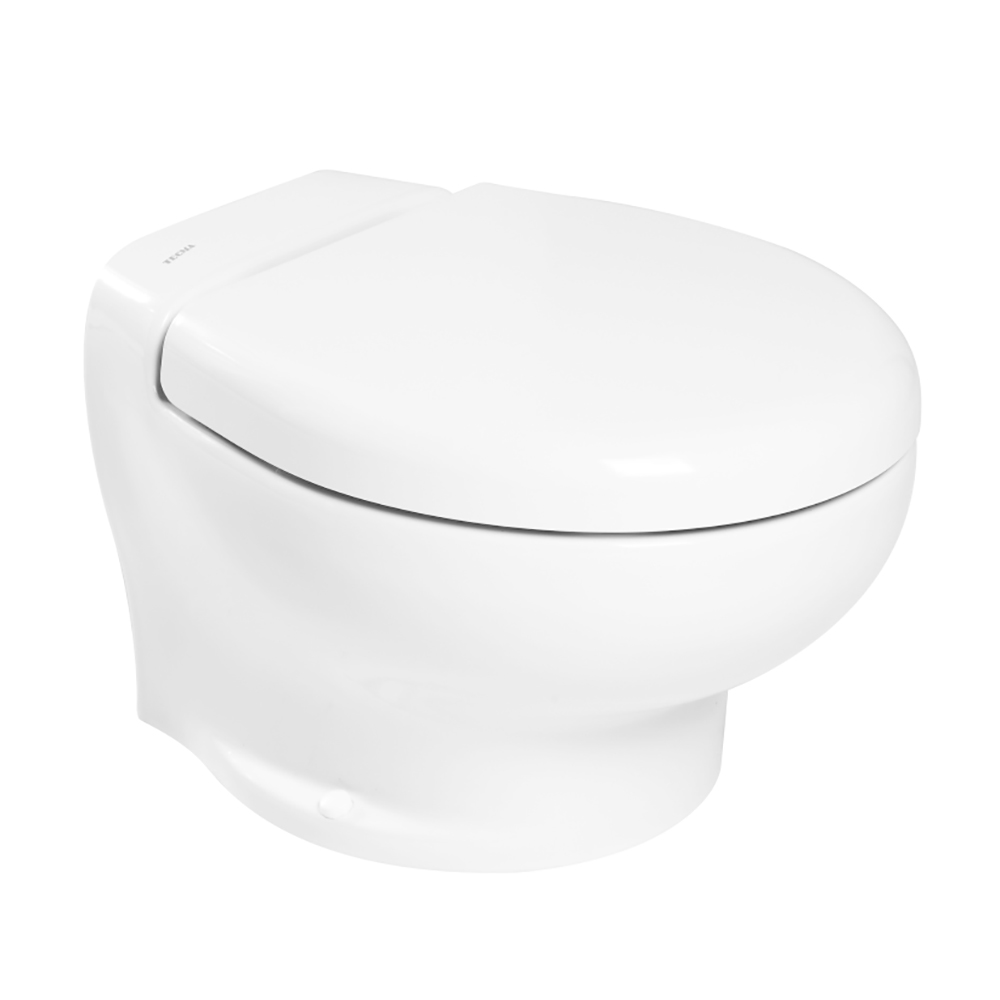

Nano Premium Plus Compact Toilet – 24V
The Tiny Turbo Toilet!
From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks its compact size.
Features:
- Uses 2 check valves and this combined with a water trap ensures there are no odor issues
- Incredibly quiet operation
- Can use both raw water and pressure water flush
- Leaves a clean, dry bowl after every powerful flush
- User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features
Technical Specifications:
- Material – Italian ceramic
- Flush Rate – 0.1-0.7 gallons per flush
- Outlet pump recommended fuse – 20A
- Outlet pump performance – 13.1ft vertical suction, 131.2ft horizontal suction
- Inlet solenoid (fresh water) power consumption – 10W
- Inlet pump (raw water) fuse – 4A
- Inlet pump (raw water) pressure – 45 PSI
In the Box:
- 1 – 24v Tecma Nano toilet
- 1 – Wall switch and controller
- 1 – Black wall switch bezel
- 1 – Bone wall switch bezel
- 2 – 1/4 10 x 2.5” stainless steel lag screws
- 2 – 1/4” stainless steel washer
- 2 – Plastic washers
- 2 – Bolt caps
- 2 – Hose clamps – 1 1/4”- 2”, stainless
- 1 – Full tank sensor
- 1 – Lower Discharge Check Valve (with straight and elbow fittings)
- 1 – Installation/Owner’s Manual
Color = White | Gallons Per Hour = NONE | Gallons Per Minute = 3 GPM | Inlet Size = 1/2" | Operation Method = Electric | Outlet Size = 1.5" | Rinse Water = Raw/Fresh | Size = Compact Size | Suction Lift (ft.) = 13' | Type = Toilet | Volts = 24v
