Description

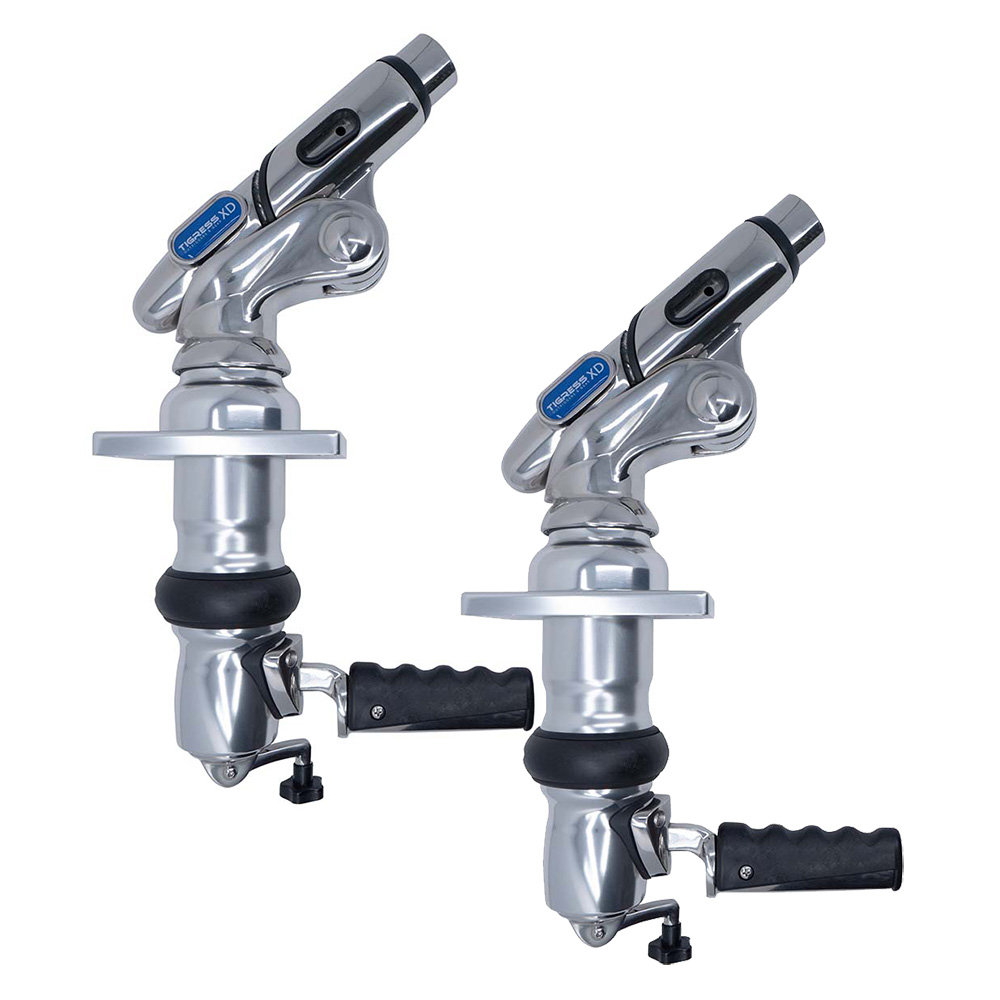

XD Crank Top Mount
Features:
- For use on sport fishing boats up to 50 feet
- Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
- User-friendly Folding Crank Handle with Integrated Drive Brake
- Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
- Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
- Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
- Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
- Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
- Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
- 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
- Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
- User-friendly underside lever actuation, with 8 optional indexable set-up positions
- Fits through all standard 3” diameter mounting plates and hardtop holes
- Sold as pair
- 3-Year Limited Warranty
