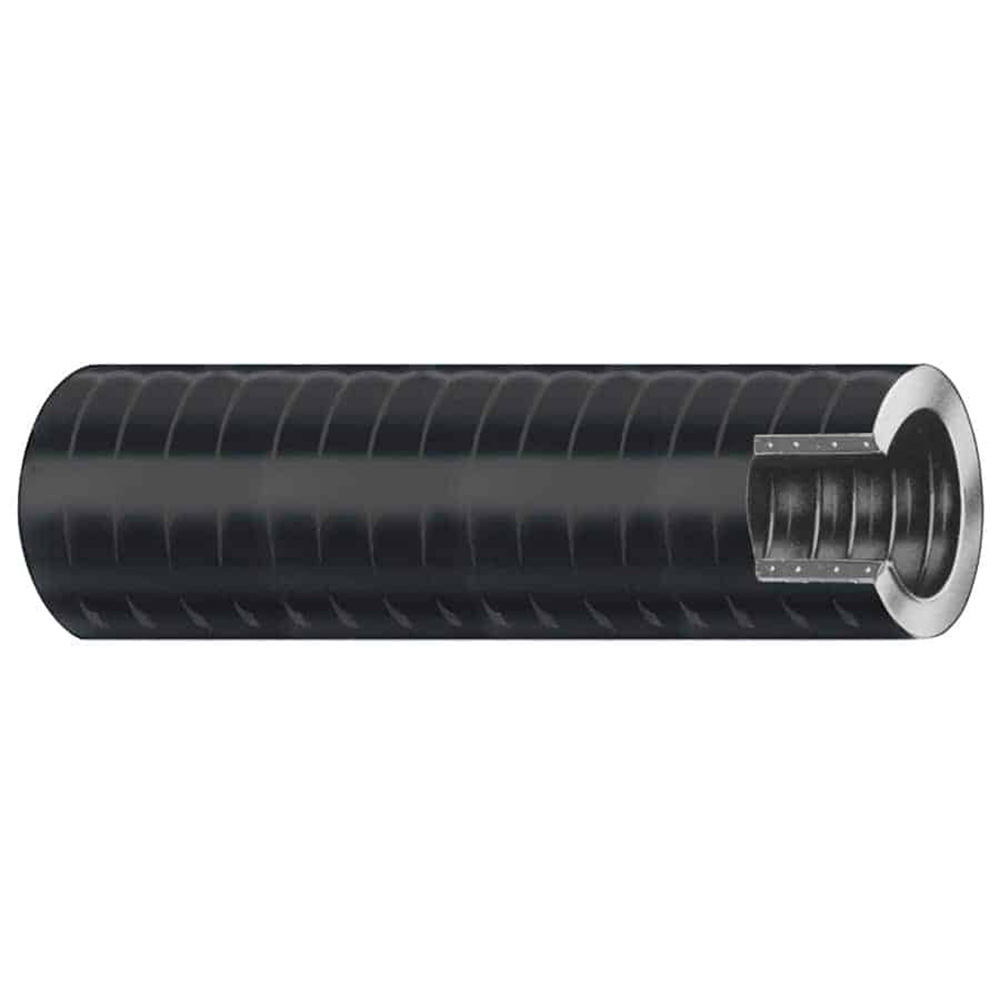

Trident Marine 1-1/8″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the foot

99608
Trident Marine

$9.99 $4.20

45 in stock
Qty :
,

Description

1-1/8″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

  • Sold by the foot
  • 149 series of hoses is extra flexible

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: Black
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Inner Diameter: (inch) 1-1/8″ / (mm) 28.6
  • Outer Diameter: (inch) 1.433″ / (mm) 36.4
  • Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
  • Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
  • Bend Radius: (inch) 3″ / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 1-1/8" | Length (Feet) = Sold By The Foot

Additional information

Weight 0.3 lbs
Dimensions 12 × 2 × 2 in
Model Number 149-1186-FT
