Trident Marine 1-1/8″ x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) – Clear w/Black Helix

98795
Trident Marine

$184.90 $104.01

0 in stock
Qty :
,

Description

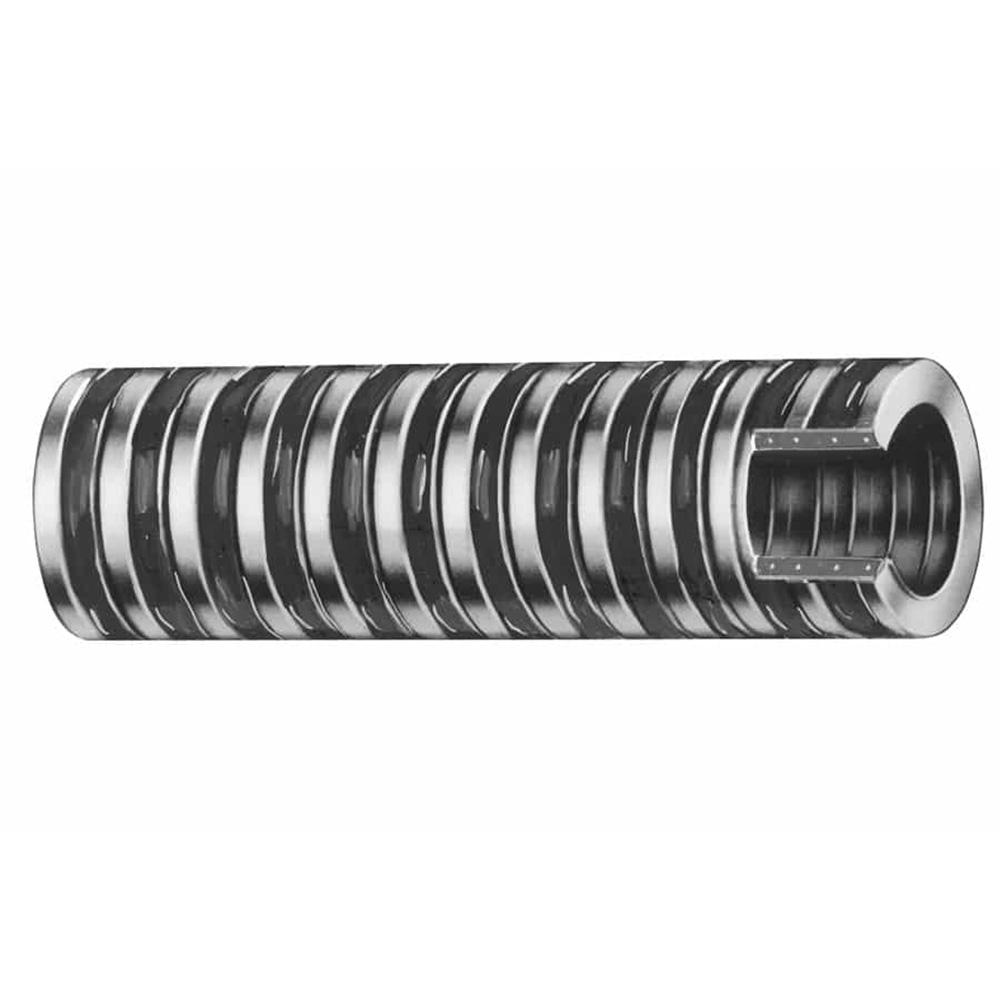

1-1/8″ x 50′ Heavy Duty PVC Bilge & Livewell Hose (FDA) – Clear with Black Helix

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

  • Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Clear vinyl reinforced with black helix
  • Color: Clear with black helix
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-49°C)
  • Boxed: 50ft. / (15.24m)
  • Inner Diameter: (inch) 1-1/8″ / (mm) 28.6
  • Outer Diameter: (inch) 1.39″ / (mm) 35.4
  • Working Pressure: (Psi Vac In./Hg) 28
  • Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
  • Bend Radius: (inch) 3.5″ / (mm) 8.9

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

Length (Feet) = 50' | ID Diameter (inches) = 1-1/8"

Additional information

Weight 14.2 lbs
Dimensions 23 × 23 × 8 in
Model Number 147-1186
UPC 704917006192
