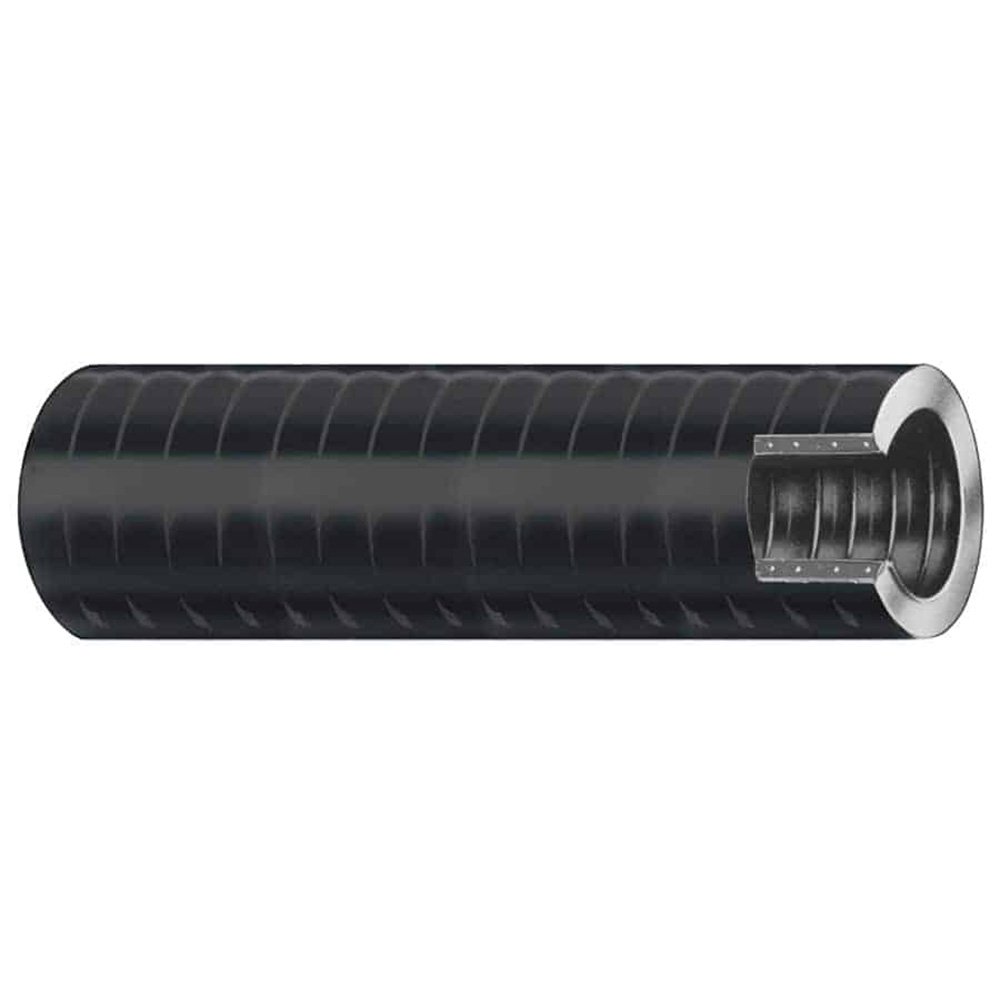

Trident Marine 1-1/8″ x 50' VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black

98792
Trident Marine

$299.14 $120.15

0 in stock
Qty :

Description

1-1/8″ x 50′ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

  • 149 series of hoses is extra flexible

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: Black
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Boxed: 50ft. / (15.2m)
  • Inner Diameter: (inch) 1-1/8″ / (mm) 28.6
  • Outer Diameter: (inch) 1.433″ / (mm) 36.4
  • Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
  • Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
  • Bend Radius: (inch) 3″ / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

Length (Feet) = NONE | ID Diameter (inches) = NONE

Additional information

Weight 15 lbs
Dimensions 23 × 23 × 8 in
Model Number 149-1186
UPC 704917010434
