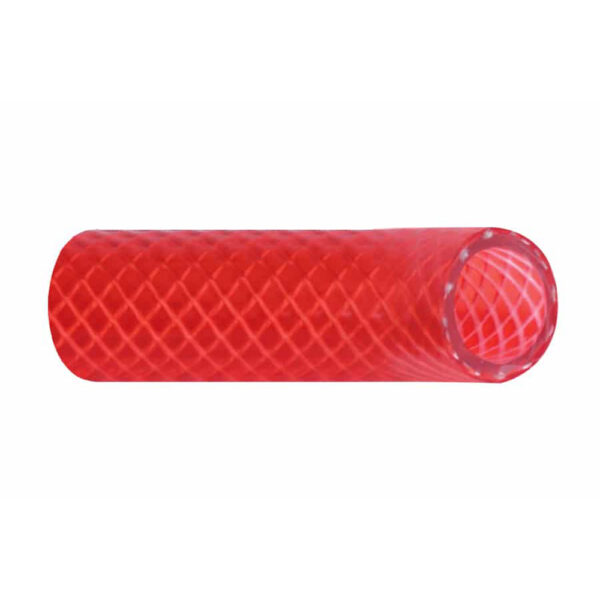

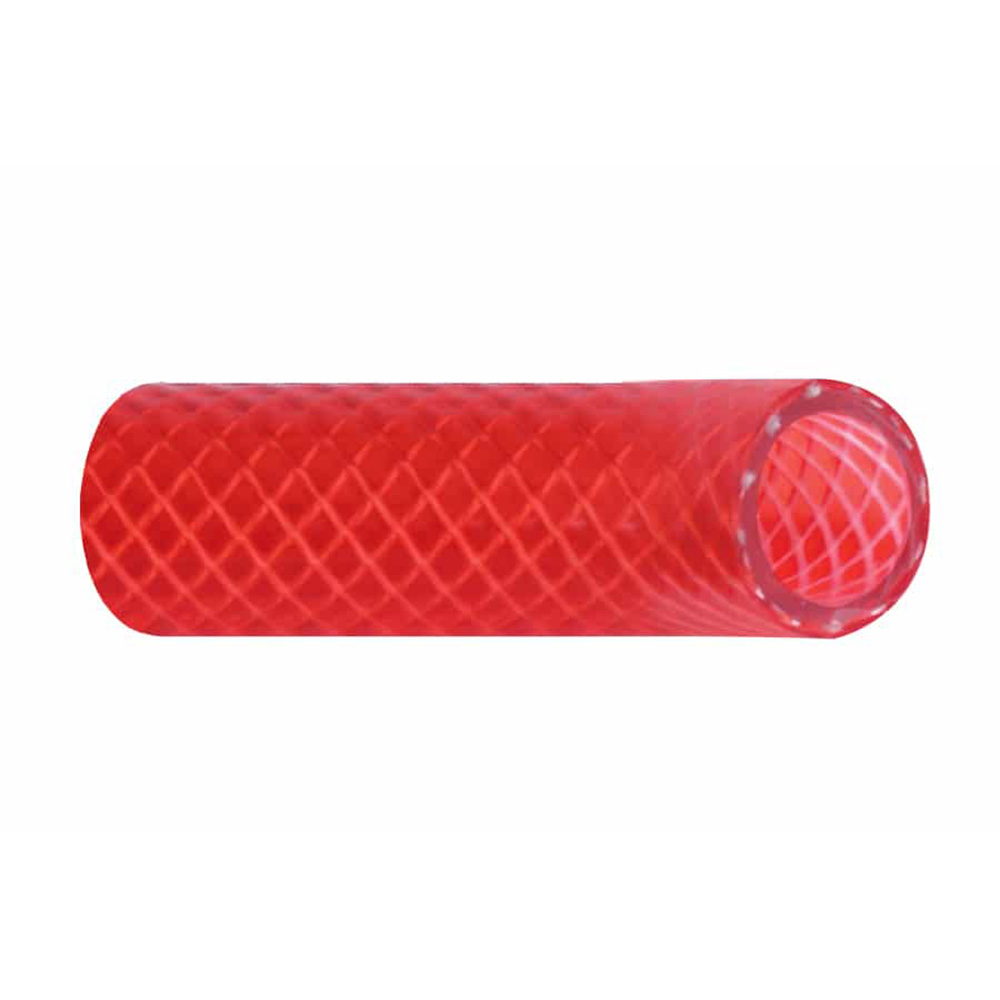

Trident Marine 1/2″ Reinforced PVC (FDA) Hot Water Feed Line Hose – Drinking Water Safe – Translucent Red – Sold by the Foot

99598
Trident Marine

$9.99 $1.58

2 in stock
Qty :

Description

1/2″ Reinforced PVC (FDA) Hot Water Feed Line Hose – Drinking Water Safe – Translucent Red – Sold by the Foot

Trident 166 Series Red – polyester reinforced PVC hose for “Hot Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

  • Sold by the foot
  • The Red cover allows for easy identification of “Hot Water” lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Red Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

  • Inner Diameter: (inch) 1/2″ / (mm) 12.7
  • Outer Diameter: (inch) .777 / (mm) 19.6
  • Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
  • Bend Radius: (inch) 0.98″ / (mm) 25

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 1/2" | Length (Feet) = Sold By The Foot

Additional information

Weight 0.15 lbs
Dimensions 6 × 1 × 1 in
Model Number 166-0126-FT
