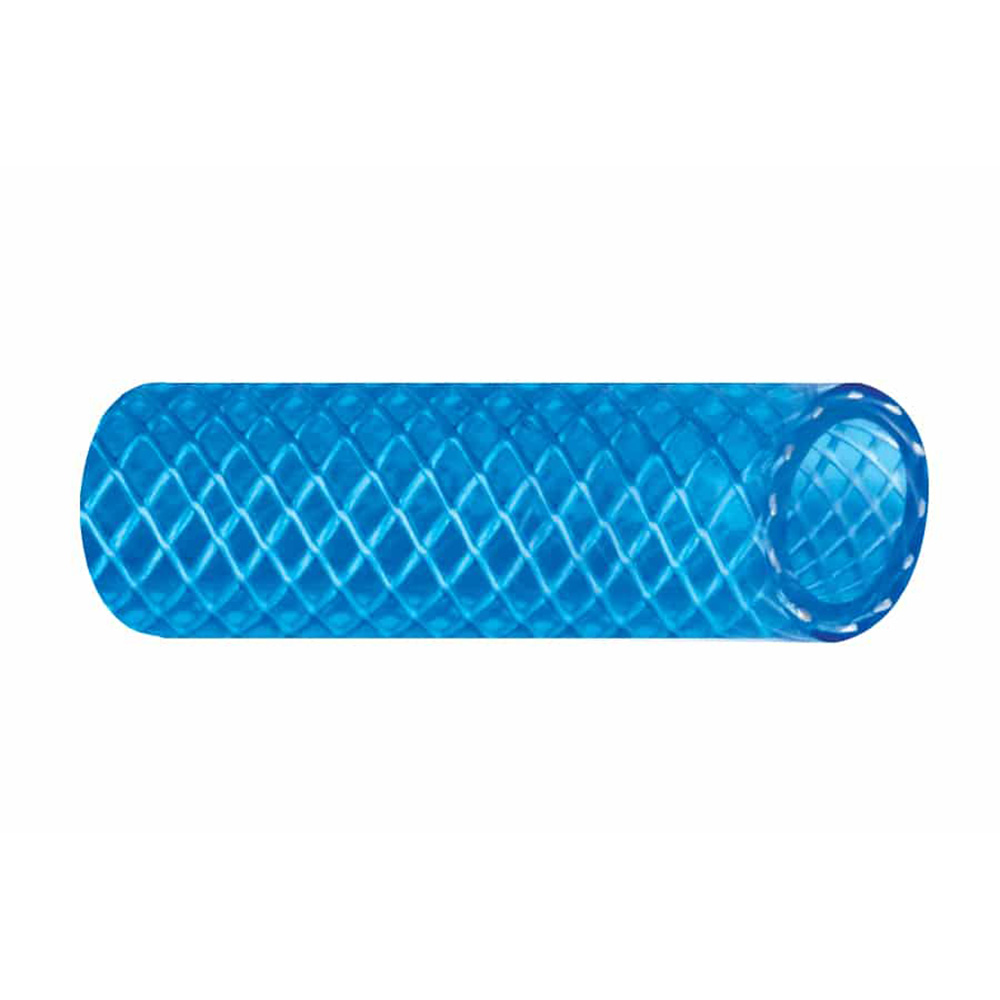

Trident Marine 1/2″ x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue

98801
Trident Marine

$115.80 $44.30

4 in stock
Qty :

Description

1/2″ x 50′ Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue

Trident 165 Series Blue – polyester reinforced PVC hose for “Cold Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

  • The Blue cover allows for easy identification of “Cold Water” lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Blue Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)
  • Length: 50’ (15.24m)

Specifications:

  • Inner Diameter: (inch) 1/2″ / (mm) 12.7
  • Outer Diameter: (inch) .777 / (mm) 19.6
  • Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
  • Bend Radius: (inch) 0.98″ / (mm) 25

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

Length (Feet) = 50.0 | ID Diameter (inches) = 1/2"

Additional information

Weight 7.1 lbs
Dimensions 18 × 18 × 3 in
Model Number 165-0126
UPC 704917023946
