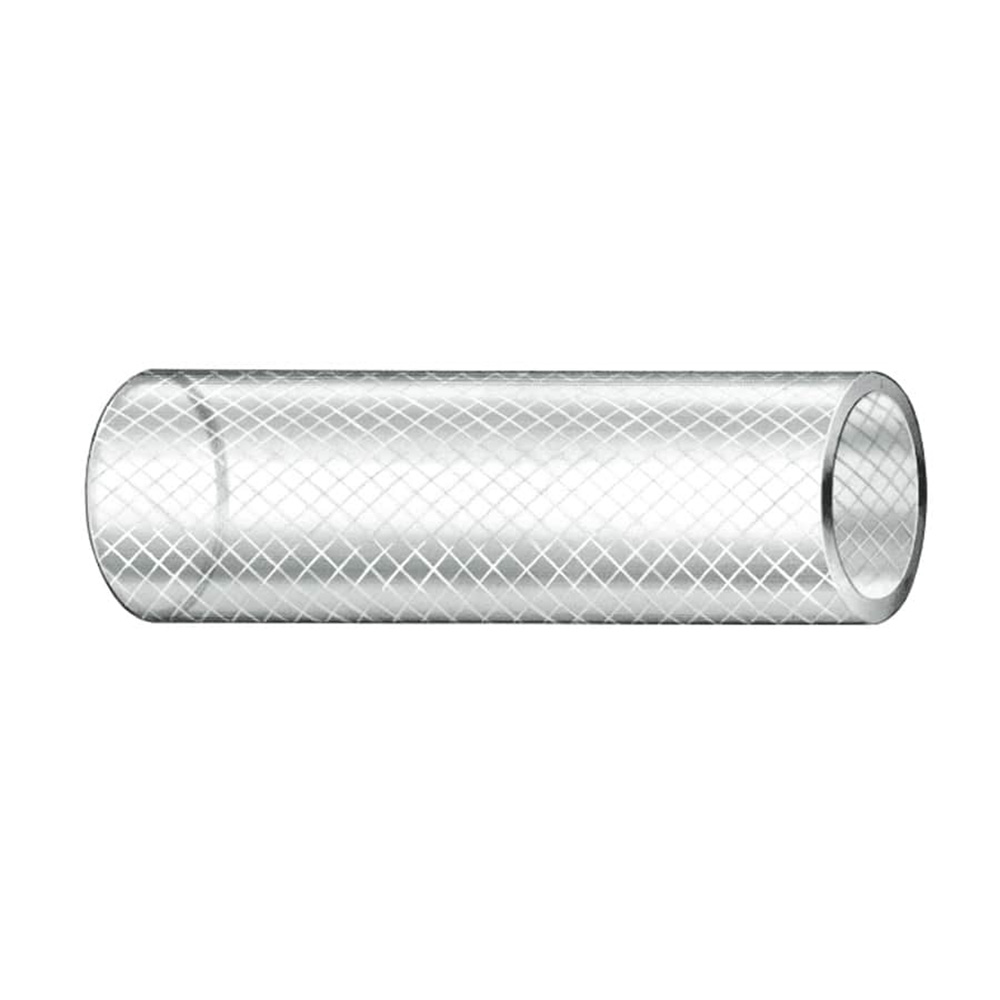

Trident Marine 1″ Heavy Duty Reinforced PVC (FDA) Hose – Drinking Water Safe – Clear – Sold by the Foot

99602
Trident Marine

$9.99 $3.18

45 in stock
Qty :
,

Description

1″ Heavy Duty Reinforced PVC (FDA) Hose – Drinking Water Safe – Clear – Sold by the Foot

Clear FDA-grade PVC hose with heavy-duty nylon reinforcement provides excellent flexibility and bend radius.

Features:

  • Sold by the foot
  • Good flexibility and bend radius
  • Resists odor, taste, and up to 250 PSI/WP (depending on I.D. size) @ 70°F (21°C)
  • This hose is safe for use with drinking water

Applications:

  • For pressurized drinking water systems and many other uses
  • For cold and hot tap water

Construction:

  • Tube: Plasticized PVC (FDA)
  • Color: Clear with white nylon reinforcement
  • Reinforcement: PVC and HD nylon reinforcement
  • Temperature Range: 20°F to 150°F (-7ºC to 66ºC)

Specifications:

  • Inner Diameter: (inch) 1″ / (mm) 25.4
  • Outer Diameter: (inch) 1.185 / (mm) 30.1
  • Burst Pressure: (PSI @ 70ºF) 25.7 / (bar) 1.77
  • Working Pressure: (PSI @ 70ºF) 90

Bend Radius: (inch) 4″ / (mm) 101.6

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 1" | Length (Feet) = Sold By The Foot

Additional information

Weight 0.28 lbs
Dimensions 6 × 1 × 1 in
Model Number 161-1006-FT
