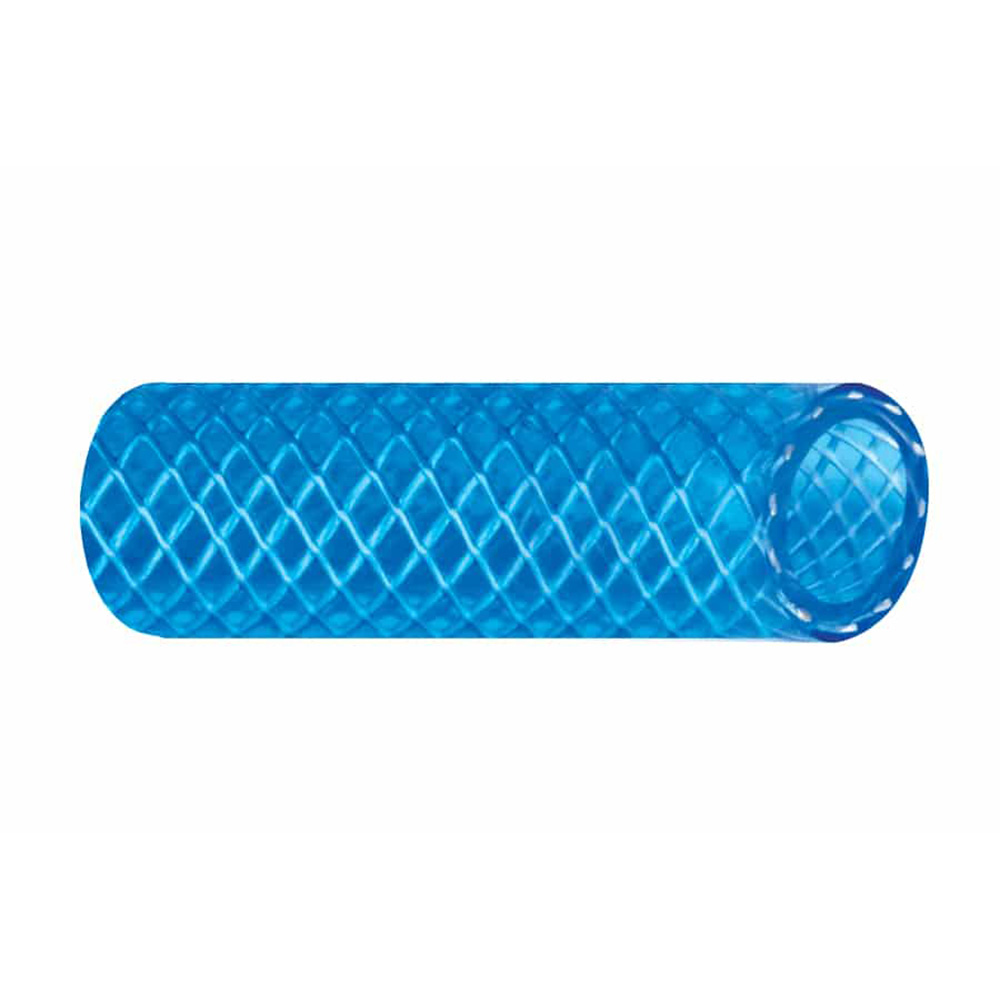

Trident Marine 3/4″ Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue – Sold by the Foot

99601
Trident Marine

$9.99 $2.21

22 in stock
Qty :

Description

3/4″ Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue – Sold by the Foot

Trident 165 Series Blue – polyester reinforced PVC hose for “Cold Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

  • Sold by the foot
  • The Blue cover allows for easy identification of “Cold Water” lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Blue Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

  • Inner Diameter: (inch) 3/4″ / (mm) 19
  • Outer Diameter: (inch) 1 / (mm) 25.4
  • Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
  • Bend Radius: (inch) 1.5″ / (mm) 38

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 3/4" | Length (Feet) = NONE

Additional information

Weight 1 lbs
Dimensions 12 × 1 × 1 in
Model Number 165-0346-FT
