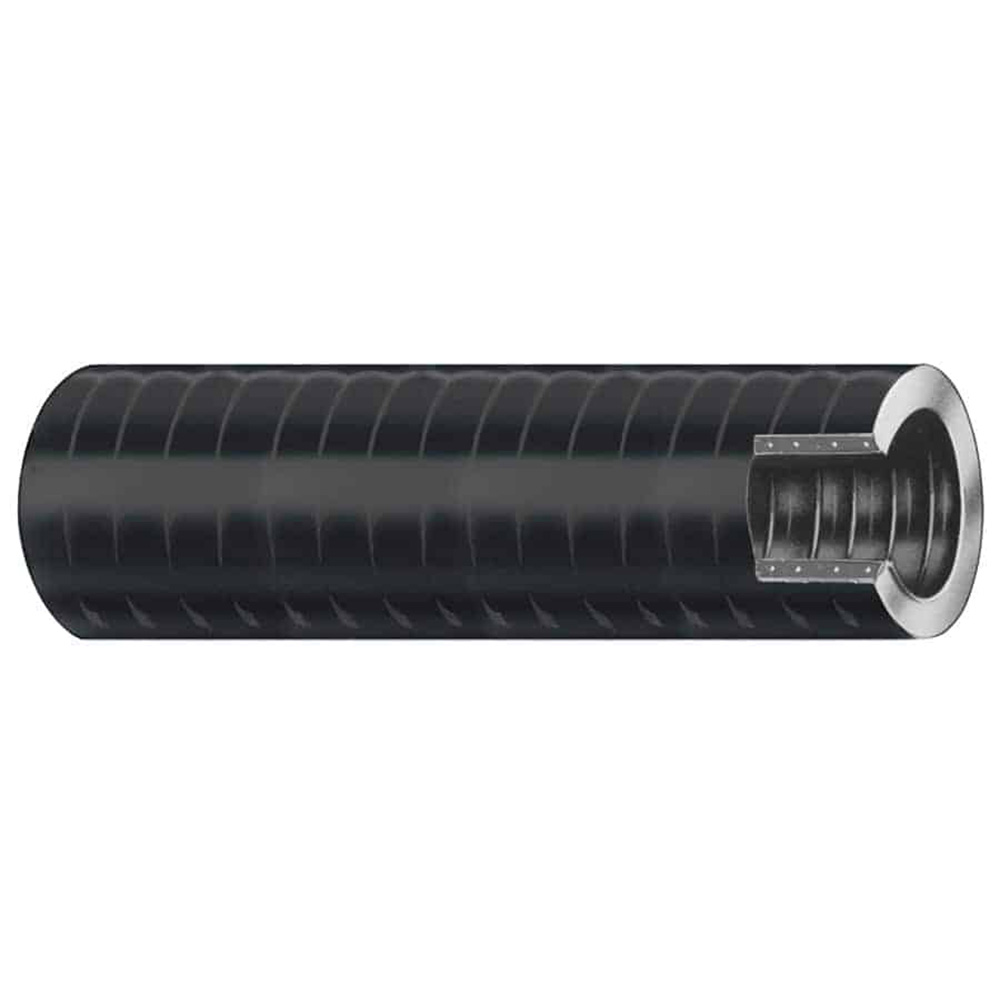

Trident Marine 3/4″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot

99607
Trident Marine

$9.99 $2.76

8 in stock
Qty :
,

Description

3/4″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

  • Sold by the foot
  • 149 series of hoses is extra flexible

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: Black
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Inner Diameter: (inch) 3/4″ / (mm) 19.1
  • Outer Diameter: (inch) .986″ / (mm) 25
  • Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
  • Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99
  • Bend Radius: (inch) 3″ / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 3/4" | Length (Feet) = Sold By The Foot

Additional information

Weight 0.19 lbs
Dimensions 6 × 1 × 1 in
Model Number 149-0346-FT
