Description

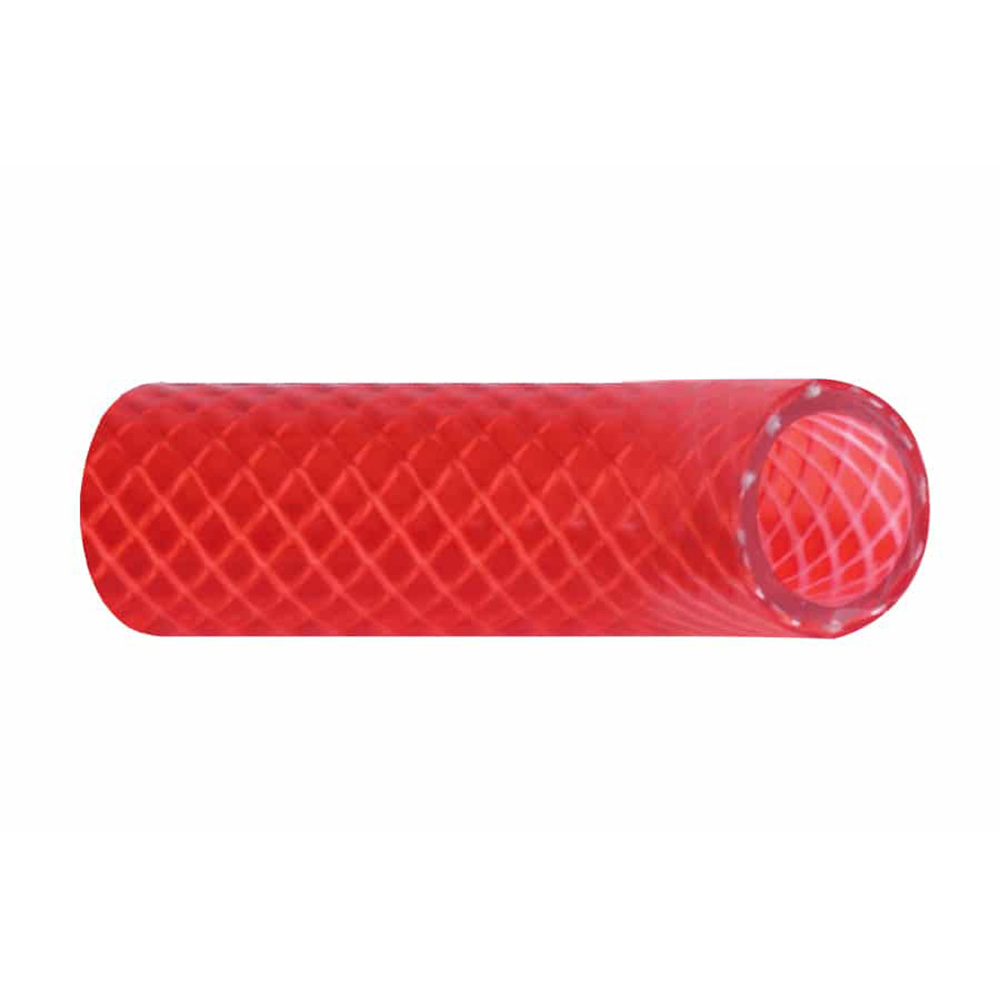

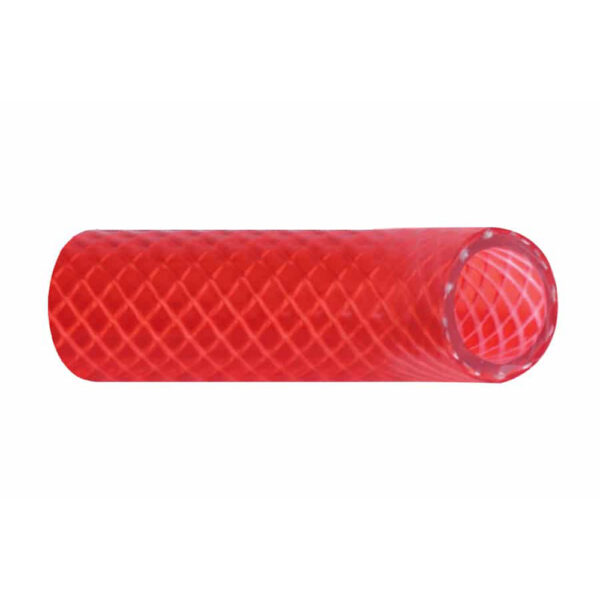

3/4″ x 50′ Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose – Drinking Water Safe – Translucent Red
Trident 166 Series Red – polyester reinforced PVC hose for “Hot Water” feed lines. The FDA-grade tube is nontoxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).
Features:
- The Red cover allows for easy identification of “Hot Water” lines on your boat
- Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
- This hose is safe for use with drinking water
Application:
- Perfect for hot, pressurized applications, hot water feed, drains, and vent lines
Construction:
- Tube & Cover: Clear FDA tube
- Color: Red Transparent
- Reinforcement: Polyester
- Temperature Range: -18°F to 149°F (-28°C to 65°C)
- Length: 50’ (15.24m)
Specifications:
- Inner Diameter: (inch) 3/4″ / (mm) 19
- Outer Diameter: (inch) 1 / (mm) 25.4
- Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
- Bend Radius: (inch) 1.5″ / (mm) 38
*Burst Pressure is 4 x Working Pressure
Length (Feet) = 50.0 | ID Diameter (inches) = 3/4"
