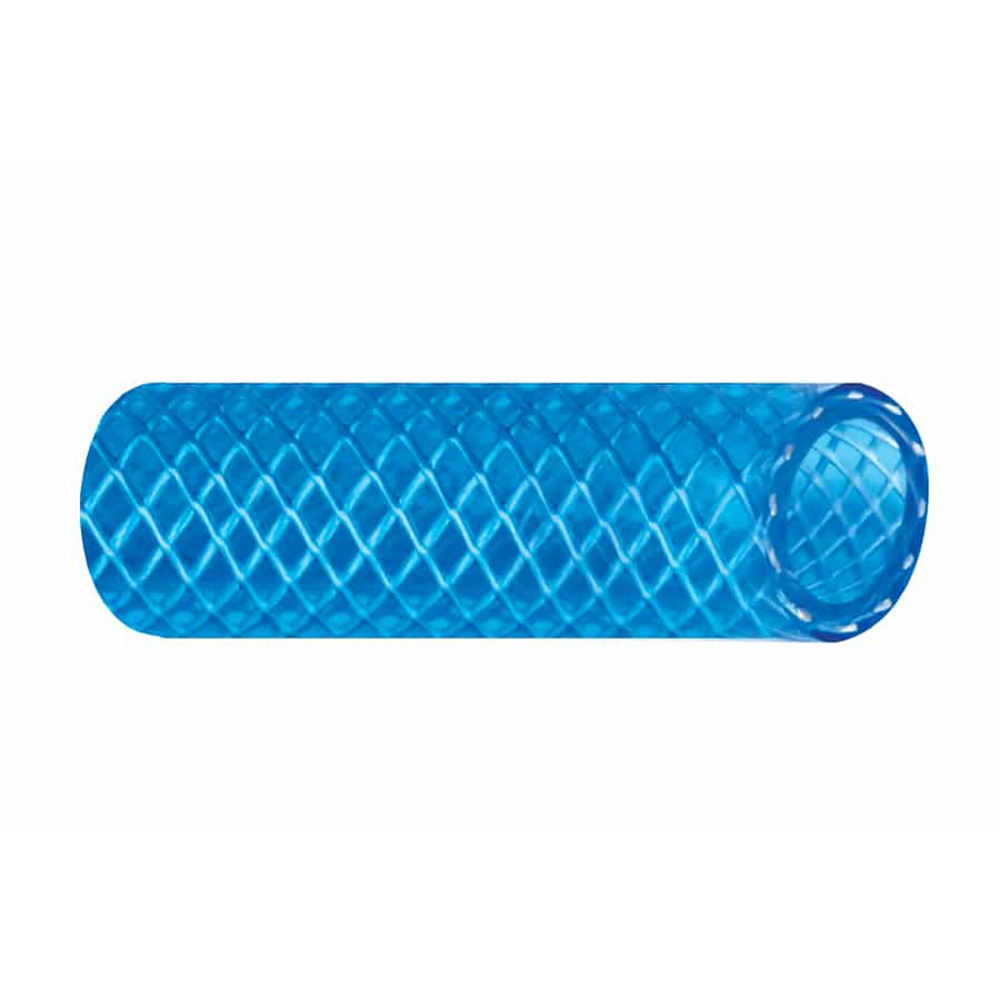

Trident Marine 5/8″ Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue – Sold by the Foot

99600
Trident Marine

$9.99 $1.68

8 in stock
Qty :

Description

5/8″ Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue – Sold by the Foot

Trident 165 Series Blue – polyester reinforced PVC hose for “Cold Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).

Features:

  • Sold by the foot
  • The Blue cover allows for easy identification of “Cold Water” lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Blue Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

  • Inner Diameter: (inch) 5/8″ / (mm) 15.9
  • Outer Diameter: (inch) .866 / (mm) 22.5
  • Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
  • Bend Radius: (inch) 1.26″ / (mm) 32

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide Litreture

Brochure Litreture

ID Diameter (inches) = 5/8" | Length (Feet) = Sold By The Foot

Additional information

Weight 0.17 lbs
Dimensions 6 × 1 × 1 in
Model Number 165-0586-FT
