Description

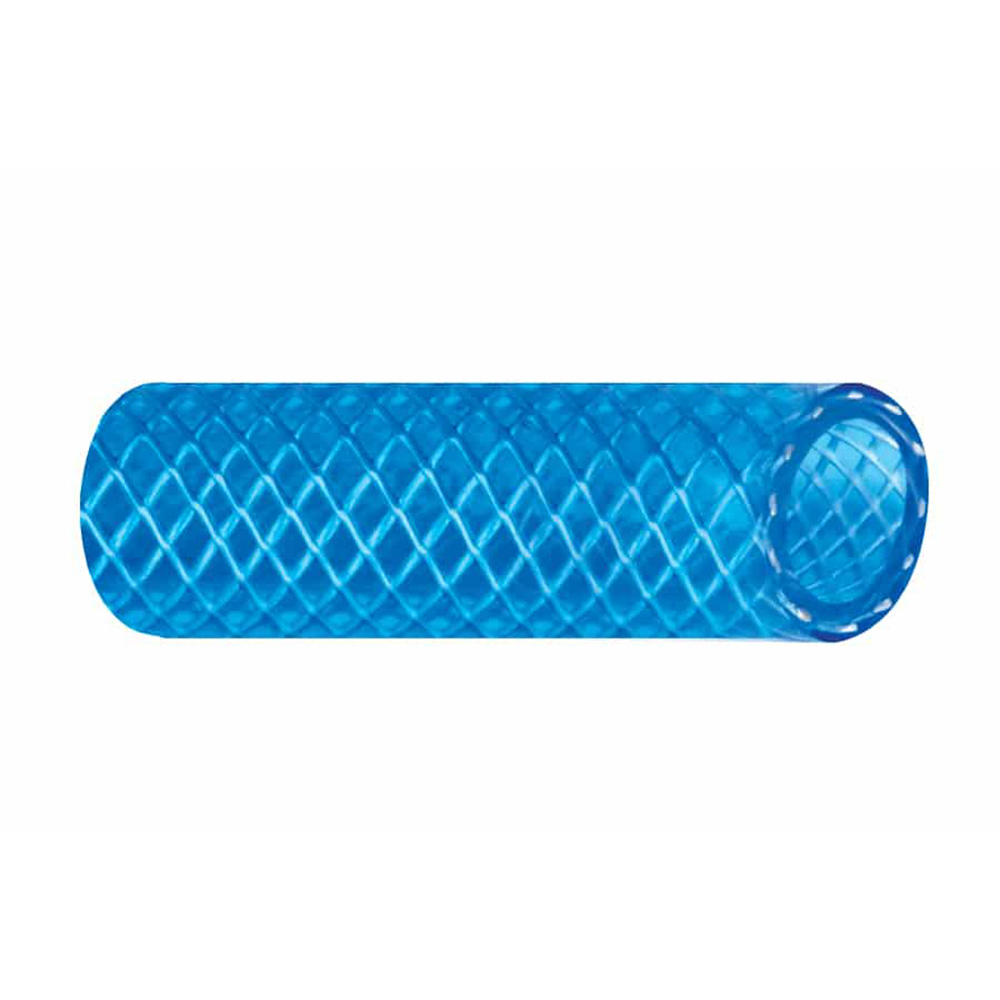

5/8″ x 50′ Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue
Trident 165 Series Blue – polyester reinforced PVC hose for “Cold Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).
Features:
- The Blue cover allows for easy identification of “Cold Water” lines on your boat
- Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
- This hose is safe for use with drinking water
Application:
- Perfect for cold pressurized applications, water feed, drains, and vent lines
Construction:
- Tube & Cover: Clear FDA tube
- Color: Blue Transparent
- Reinforcement: Polyester
- Temperature Range: -18°F to 149°F (-28°C to 65°C)
- Length: 50’ (15.24m)
Specifications:
- Inner Diameter: (inch) 5/8″ / (mm) 15.9
- Outer Diameter: (inch) .866 / (mm) 22.5
- Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
- Bend Radius: (inch) 1.26″ / (mm) 32
*Burst Pressure is 4 x Working Pressure
Length (Feet) = 50.0 | ID Diameter (inches) = 5/8"
