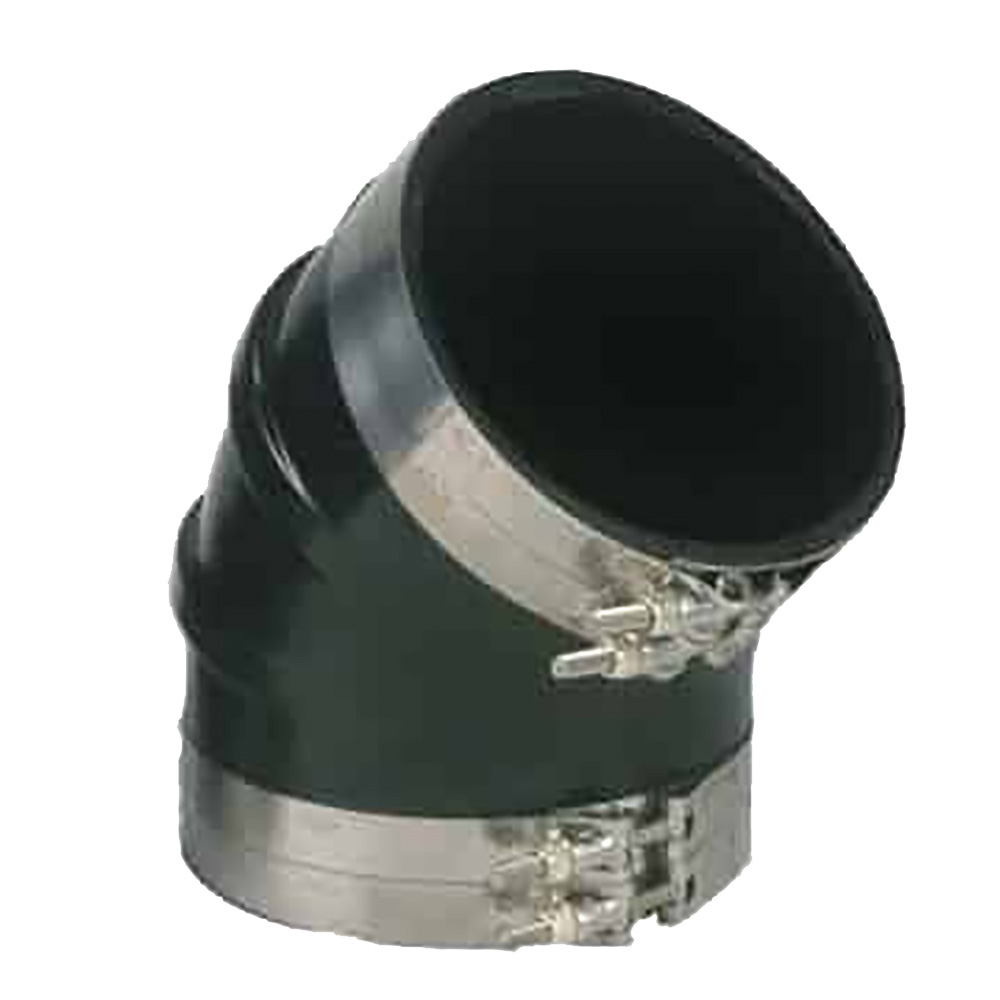

Trident Marine 5″ ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

100829
Trident Marine

$160.22 $90.12

2 in stock
Qty :

Description

5″ ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

Specifications:

  • Inner Diameter: (inch) 5” / (mm) 127
  • Outer Diamter: (inch) 5.5″ / (mm) 139.7
  • A: (inch) 1.62” / (mm) 48.1
  • B: (inch) 1.62” / (mm) 48.1
  • C: (inch) 5.75” / (mm) 146
  • W: (inch) 0.25” / (mm) 6.35
  • Elbow Degree: 45 degrees
  • Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478

Quick Guide Litreture

Brochure Litreture

Additional information

Weight 2.5 lbs
Dimensions 9 × 8 × 8 in
Model Number TRL-545-S/S
UPC 704917000466
