Description

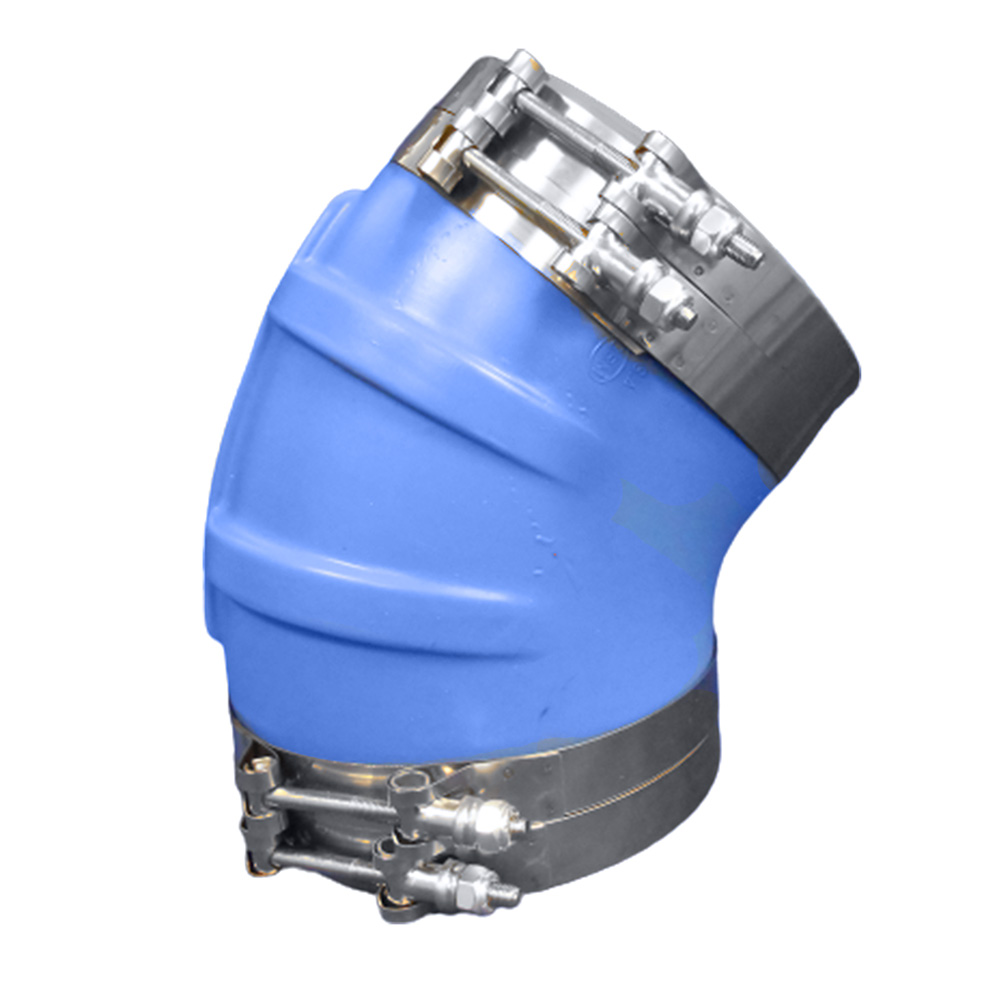

6″ ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6″ I.D. or larger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel t-bolt clamps
- Very high temp silicone/EDPM blend rubber – molded
- This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
- Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous
Construction:
- Color: Blue
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 350°F (177°C)
Specifications:
- Inner Diameter: (inch) 6” / 152.4 mm
- A: (inch) 2” / (mm) 5.1
- B: (inch) 2” / (mm) 5.1
- C: (inch) 6.5” / (mm) 16.5
- R: (inch) 1.75” / (mm) 4.5
- W: (inch) 0.25″ / (mm) 6.4
- Elbow Degree: 45 degrees
