Description
Power A MM21T – Electronic Control Package
-Dual Engine/Single Station – Mechanical Throttle/Mechanical Shift w/Trim
Power A Mark II™ Electronics Control Systems
- Private Protocol can bus for data transmission
- Connection of multiple stations up to 4 controls
- Modular System
- Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
- Plug’N Play connectivity
- Automatic engines synchronization
- Dock Assist
- Fully programmable shift delays
MM21T Package Includes:
<ul.

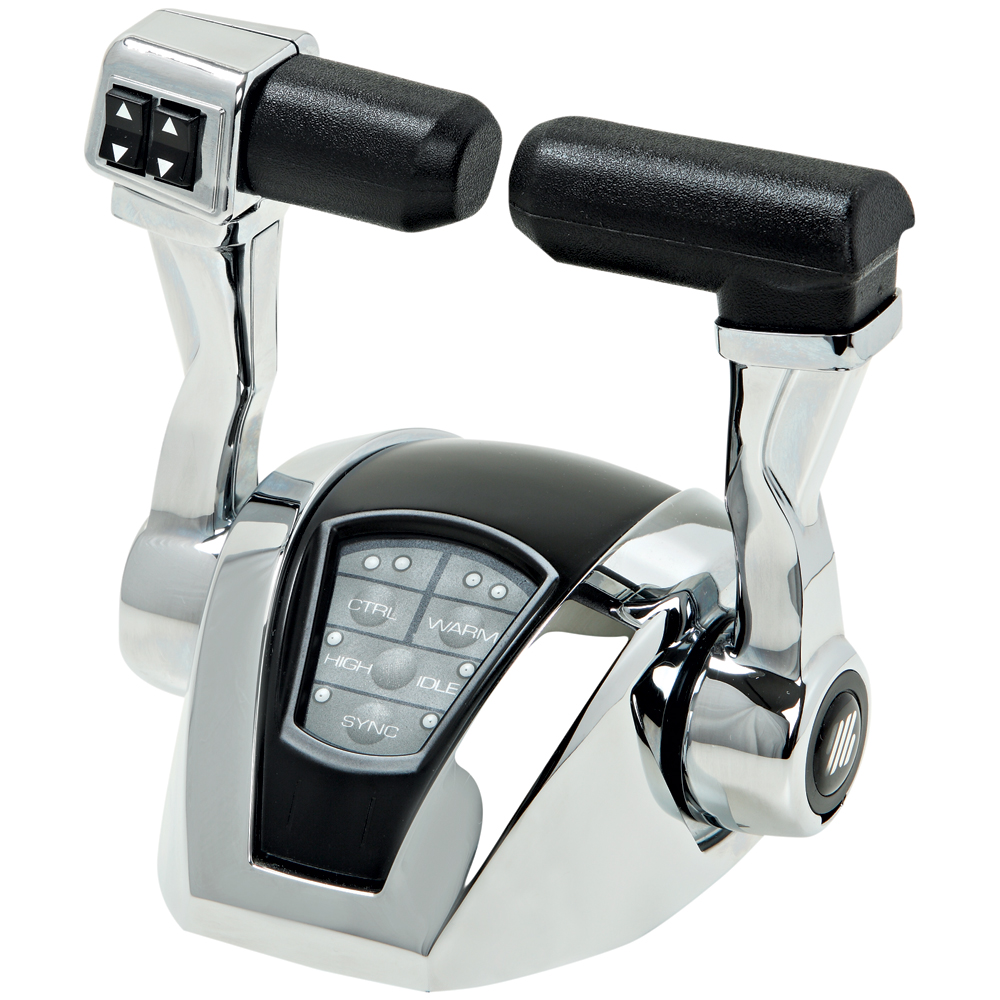

42012V – (1) PA2-B2T – Dual Lever Control w/Trim
42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
42027J – (4) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
42028L – (1) PA2-NT – Network Terminator
42053K – (1) M-P3 – Main Power Supply Cable 9.8′
71021K – (2) CAN-10 – Network Connection Cable 33′
73639T – (3) CAN-1 – Network Connection Cable 3′
42026G – (1) PA2-PU – Power Supply Unit f/12V Systems
42056S – (4) M-PE1 – Power Extension Cable 3.3′
Quick Guide Litreture
Brochure Litreture
