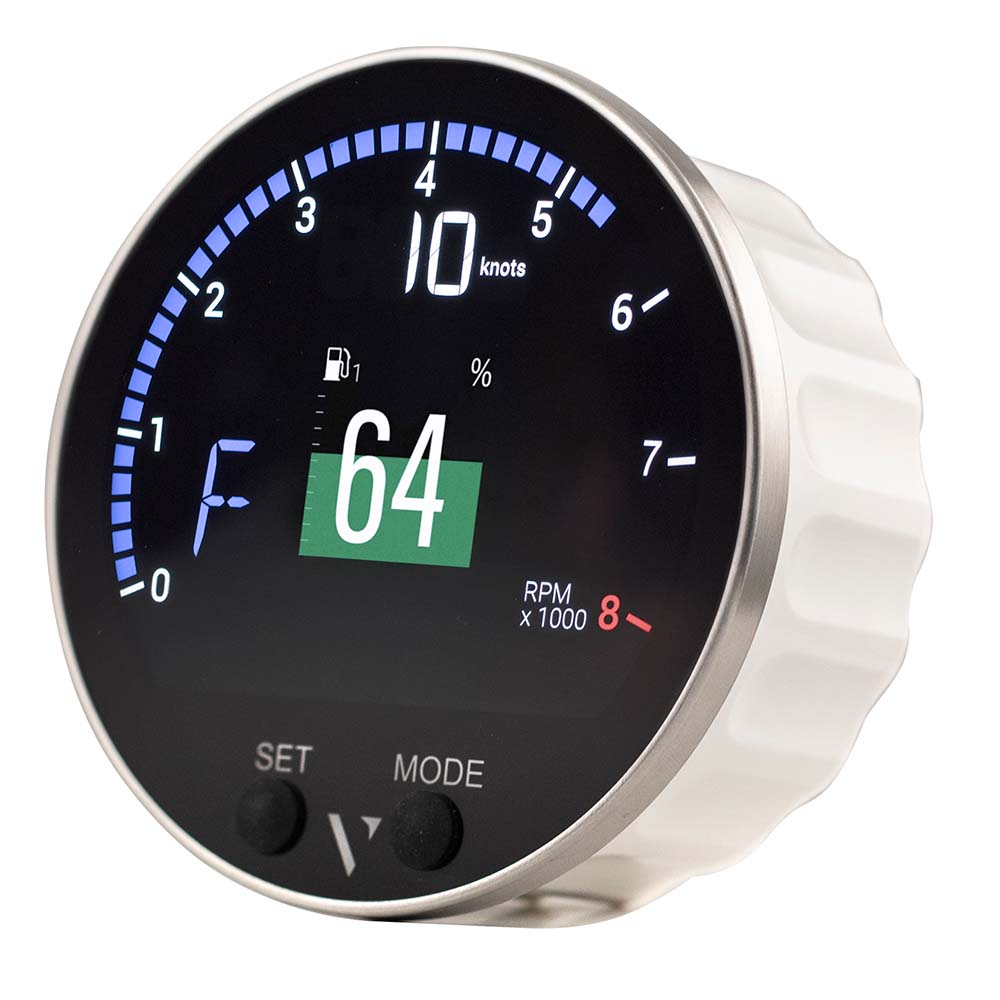

Veratron 85mm (3-3/8″) VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input w/o GPS

99417
Veratron

$247.49

(MAP Pricing)
Place in cart to see Sale Price

0 in stock
Qty :

Description

85mm (3-3/8″) VMH-35S Multifunction Gauge with Voltage Dependent (0-5V) Sensor Input without GPS

The ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter.

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, and vessel information. It’s easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

  • Intelligent Battery Sensor (IBS) port
  • Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency
  • Stylish black-glass design with brushed stainless-steel ring
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Color IBN + 1.44″ TFT optically bonded
  • Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway

Technical Specifications:

  • Nominal voltage: 12V
  • Operating voltage: 9-16V
  • Current consumption: ≤ 150 mA (normal mode)
  • Protection class: IP X7
  • Dimensions: 100 mm (outer) and 85 mm (mounting hole)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Box Set = No | Gauge Size = 3-3/8" | Gauge Type = Multifunction | Series = VMH | Voltage - Input Range (Volts) = 12v

Additional information

Weight 0.75 lbs
Dimensions 6 × 6 × 4 in
Model Number B00143601
UPC 7640190290213
