Description

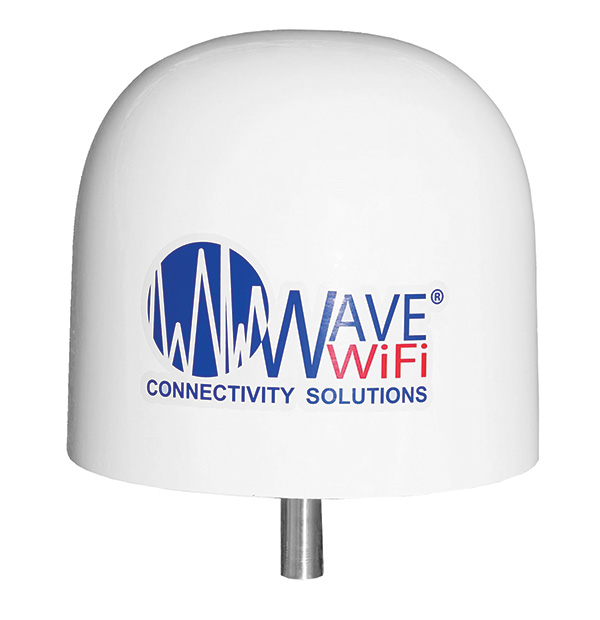

Wave WiFI Freedom Dome Dual Band MU-MIMO 2.4Ghz + 5Ghz WiFi transceiver.
Model: FREEDOM
- Dual-Band WiFi Supports 802.11 a/b/g/n/ac 2.4GHz / 5GHz (5.1-5.8) frequencies
- MIMO (Multiple Input/Multiple Output) enclosed antenna array
- Single cable 12vdc PoE (Power Over Ethernet)
- Easy install with standard 1"-14 threaded base
- 10" X 12" and weighs only 4lbs
The Freedom Dome is a Dual Band MU-MIMO 2.4Ghz + 5Ghz WiFi transceiver. The WiFi antennas are conveniently housed in the easy to mount dome. The dome comes complete with stainless steel 1-14" female thread mount so it can be used with standard marine mounts (not included). Power and connection are provided by a single 12vdc PoE (Power Over Ethernet) cable for easy installation. When connected to one of Wave’s wireless routers, marine network controllers or access points, the Freedom can provide Internet connectivity for numerous connected devices. The system comes with a user-friendly web-based interface and there is no software to install.
Specifications
| WiFi Frequency | 2.4 & 5Ghz (5.1-5.8Ghz) |
| WiFi Type | MIMO (Multiple Input/Multiple Output) |
| Cellular Bands | N/A |
| Dimensions | 10.5"x12" |
| Power | DC Power 12-V-2A |
What’s in the Box:
- FREEDOM Dome
- 25ft CAT 5e Cable
- PoE Injector
- 12VDC – 1A Regulated Power Adapter
- Right-angle PH2 Philips head Screwdriver
