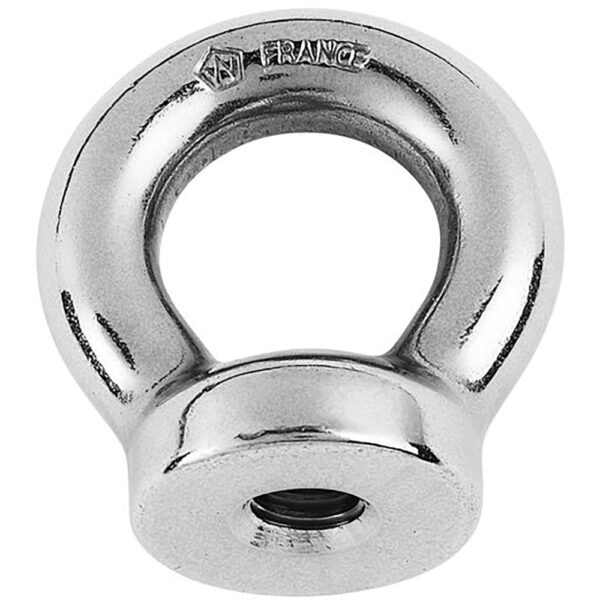

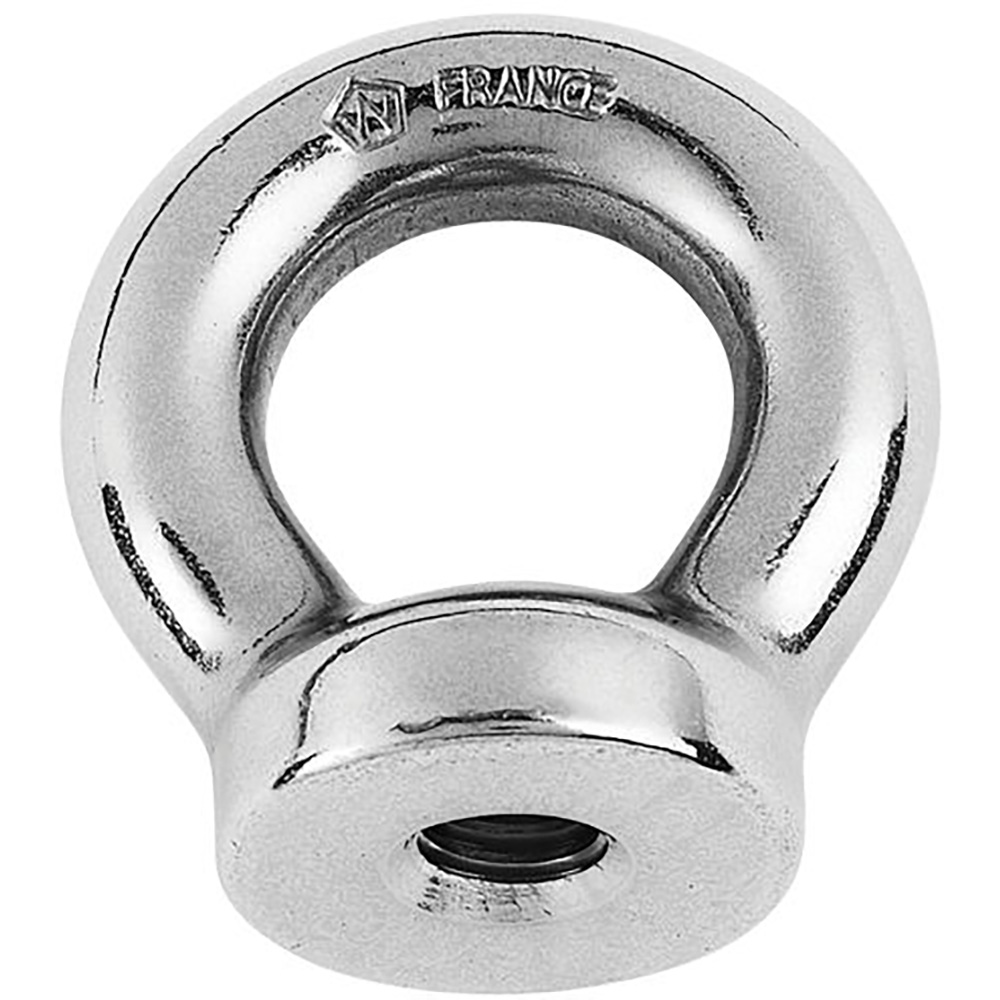

Wichard 12mm Eye Nut – Thread M16 x 200mm

97681
Wichard Marine

$93.40 $52.96

0 in stock
Qty :
,

Description

12mm Eye Nut – Thread M16 x 200mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.364 / (g) 165

Dimensions:

  • A: (mm) M16 x 200
  • B: (inch) 1 1/16″ / (mm) 27
  • C: (inch) 2 13/64″ / (mm) 56
  • D: (inch) 15/32″ / (mm) 12
  • E: (inch) 1 11/32″ / (mm) 34

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Model Number 06368
