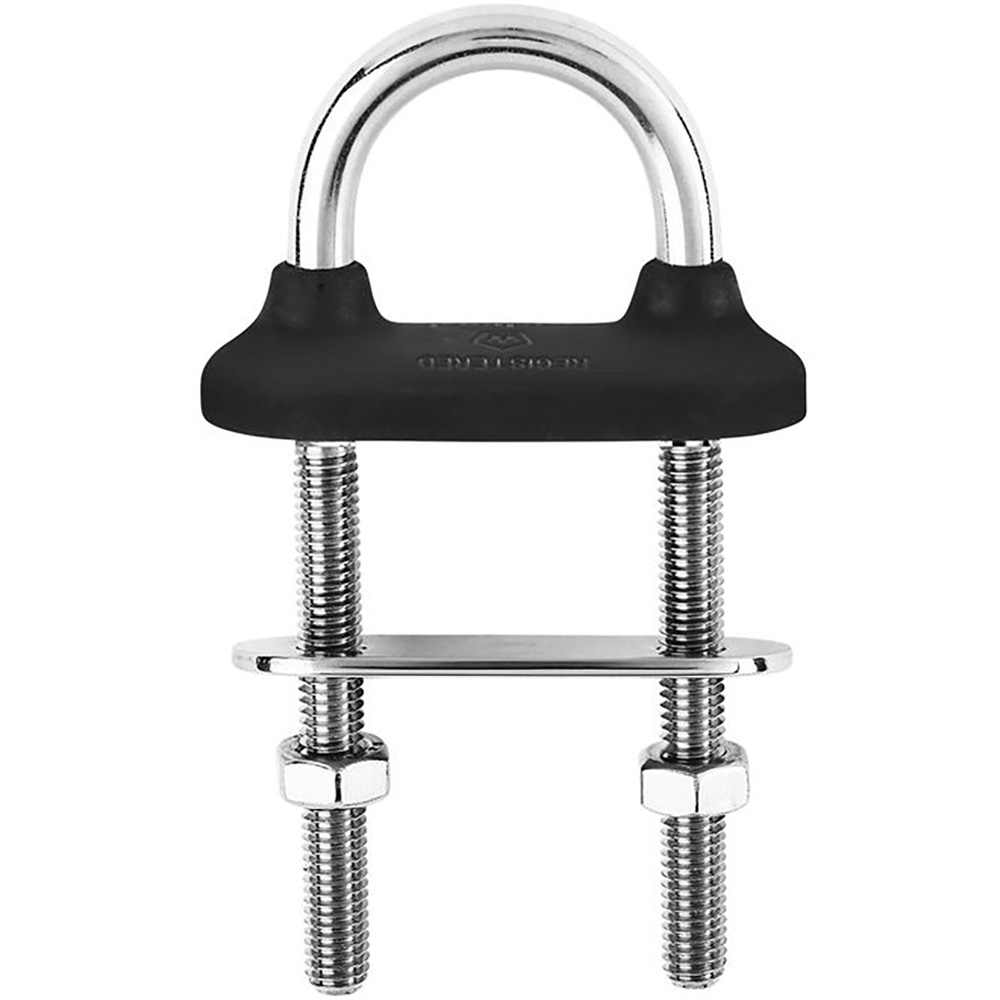

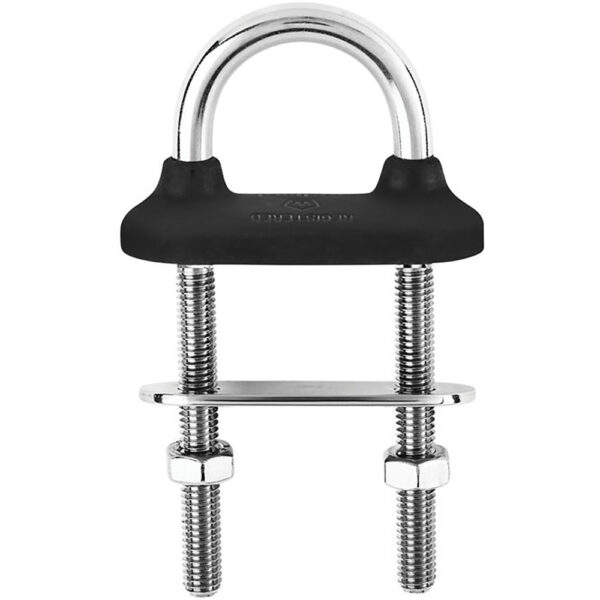

Wichard Black Watertight U-Bolt – 12mm Diameter – 15/32″ – 110mm Length – 4 21/64″

97735
Wichard Marine

$116.10 $65.82

0 in stock
Qty :
,

Description

Black Watertight U-Bolt – 12mm Diameter – 15/32″ – 110mm Length – 4 21/64″

Features:

  • Fully dropforged product with high quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials; 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.761 / (g) 345

Dimensions:

  • Length: (inch) 4 21/64″ / (mm) 110
  • A: (inch) 1 47/64″ / (mm) 44
  • B: (inch) 1 1/16″ / (mm) 27
  • C: (inch) 1 31/32″ / (mm) 50
  • D diameter: (inch) 15/32″ / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Model Number 65361
