Description

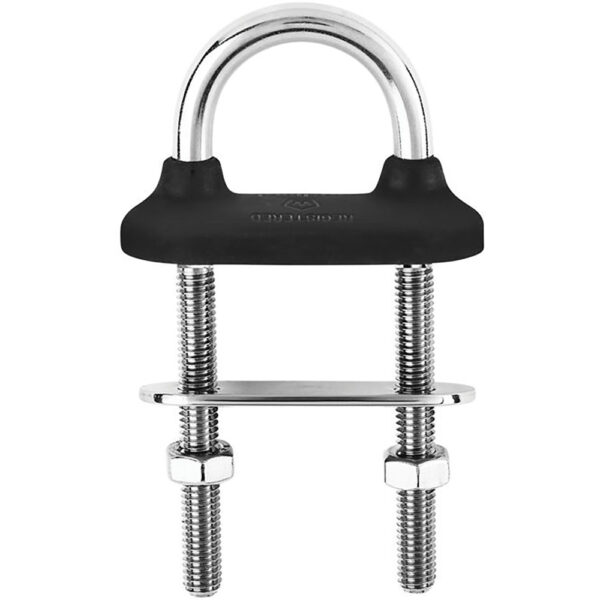

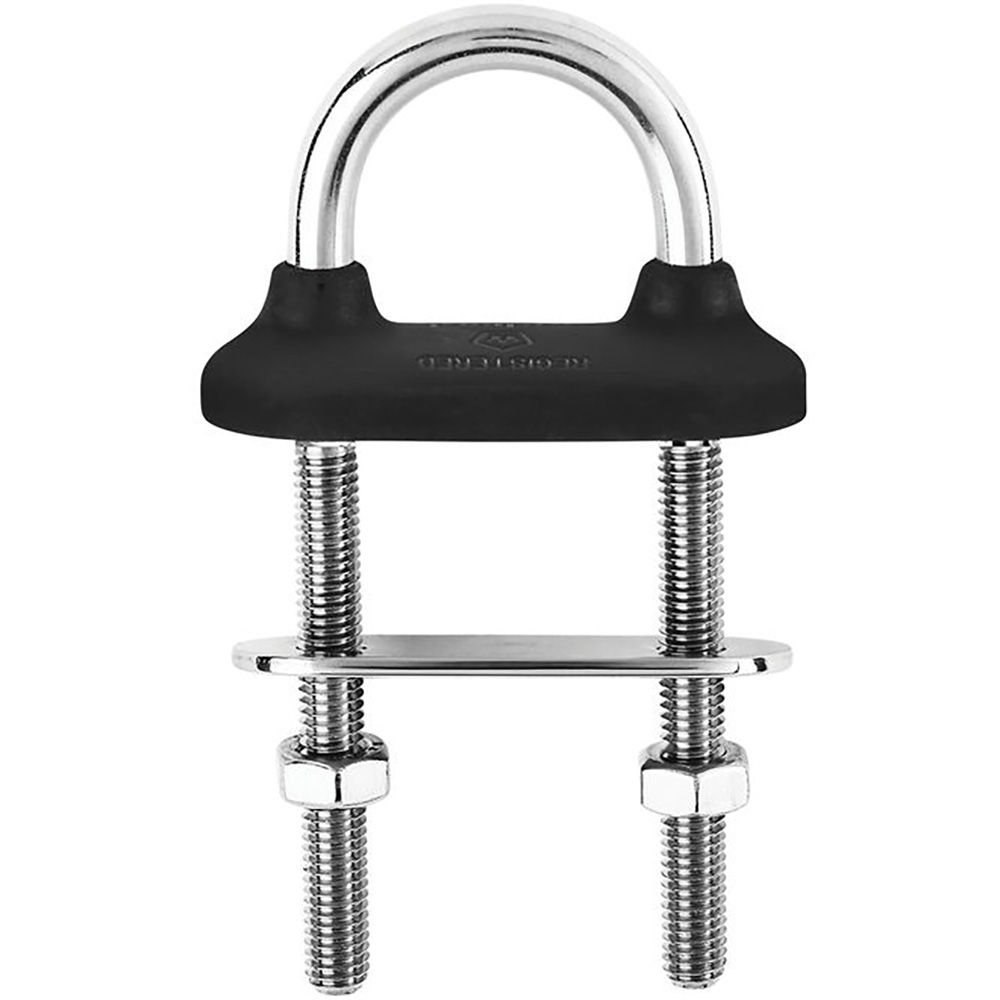

Black Watertight U-bolt – 5mm Diameter – 13/64″ – 60mm Length – 2-23/64″
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 4.5 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 1410 / (kg) 640
- Breaking load: (lb) 4400 / (kg) 2000
- Weight: (lb) 0.077 / (g) 35
Dimensions:
- Length: (inch) 2 23/64″ / (mm) 60
- A: (inch) 1 7/64″ / (mm) 28
- B: (inch) 53/64″ / (mm) 21
- C: (inch) 1 3/16″ / (mm) 30
- D diameter: (inch) 13/64″ / (mm) 5
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
