Description

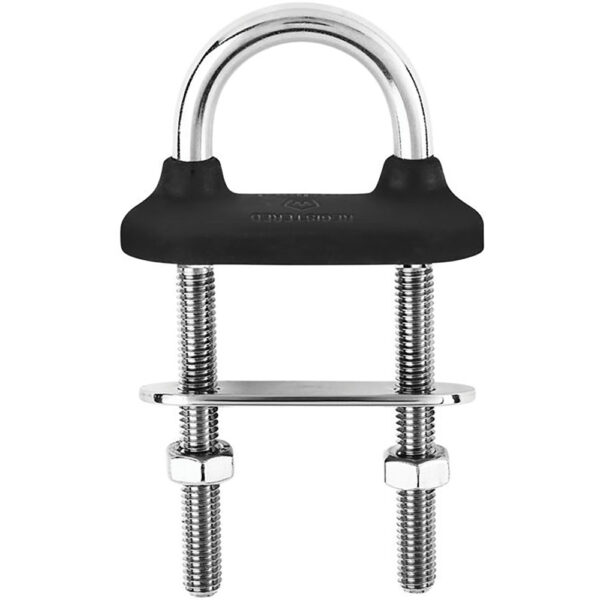

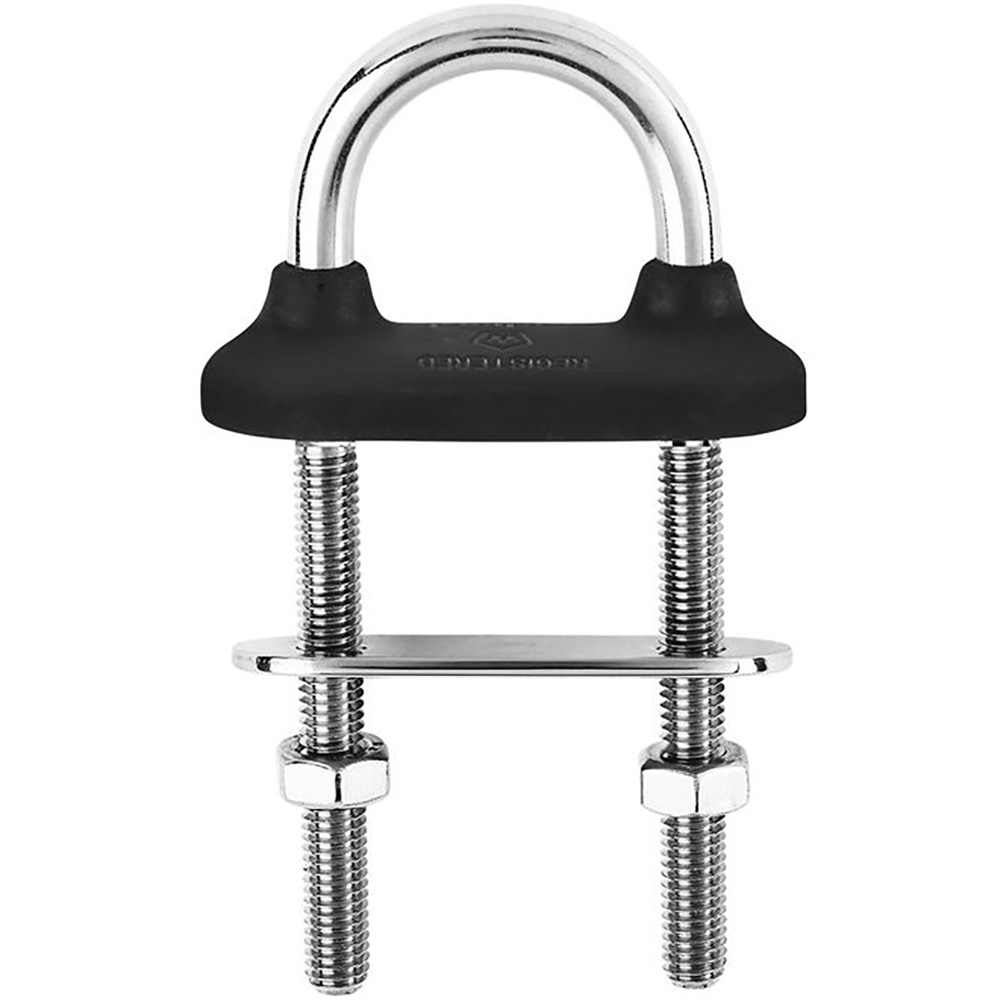

Black Watertight U-Bolt – 6mm Diameter – 15/64″ – 70mm Length – 2-3/4″
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 7.5 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 6610 / (kg) 3000
- Weight: (lb) 0.132 / (g) 60
Dimensions:
- Length: (inch) 2 3/4″ / (mm) 70
- A: (inch) 1 17/64″ / (mm) 32
- B: (inch) 15/16″ / (mm) 24
- C: (inch) 1 3/8″ / (mm) 35
- D diameter: (inch) 15/64″ / (mm) 6
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Type = NONE
