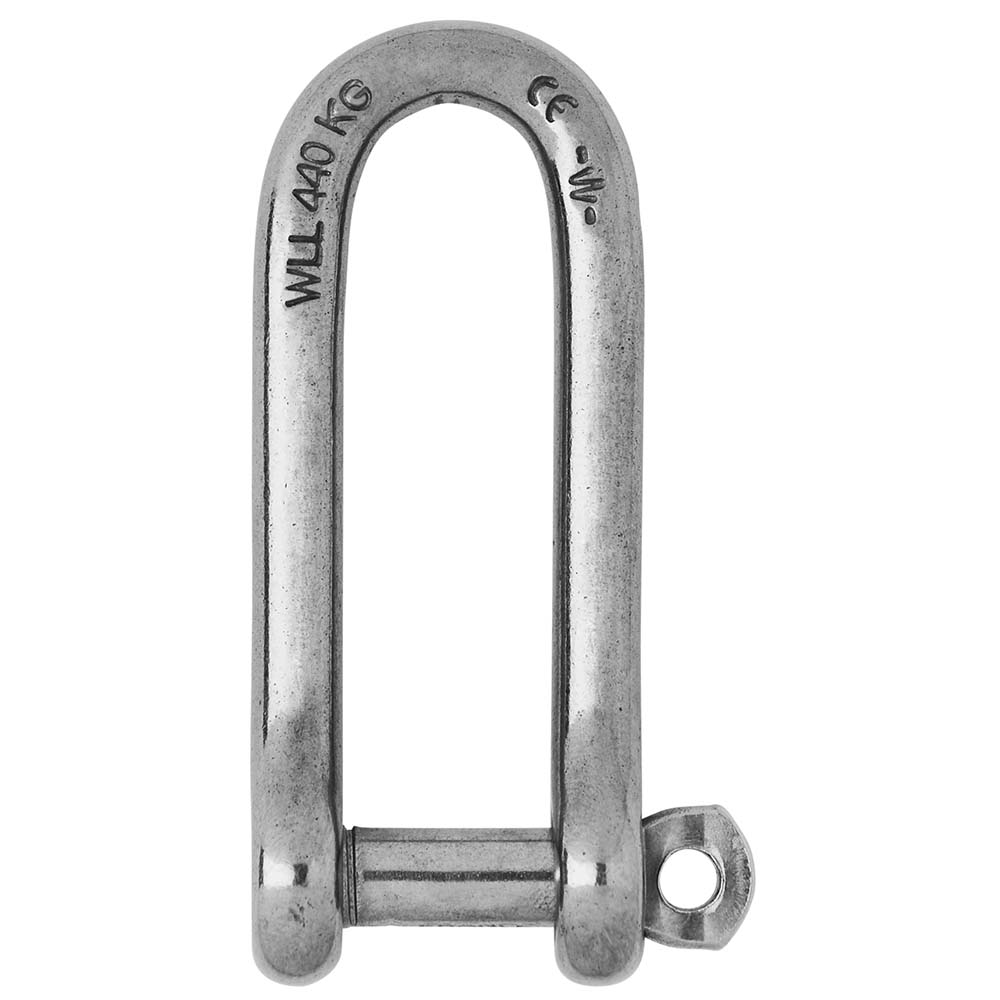

Wichard Captive Pin Long D Shackle – Diameter 10mm – 13/32″

93119
Wichard Marine

$105.20 $59.65

3 in stock
Qty :

Description

Captive Pin Long D Shackle – Diameter 10mm – 13/32″

Features:

  • Captive pin long “D” shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 2290
  • Breaking load (lb) 11460
  • Weight (lb) 0.388

Dimensions (see 2nd image):

  • A (inch) 3-5/64″
  • B (inch) 25/32″
  • C (inch) 7/16″
  • D (inch) 53/64″
  • D diameter (inch) 25/64″
  • E (inch) 25/64″
  • F (inch) 4-1/16″
  • G (inch) 2-1/8″

Additional information

Weight 0.4 lbs
Dimensions 6 × 2 × 2 in
Model Number 01415
UPC 768536014150
