Wichard Captive Pin Long D Shackle – Diameter 6mm – 1/4″

93117
Wichard Marine

$41.90 $23.76

4 in stock
Qty :

Description

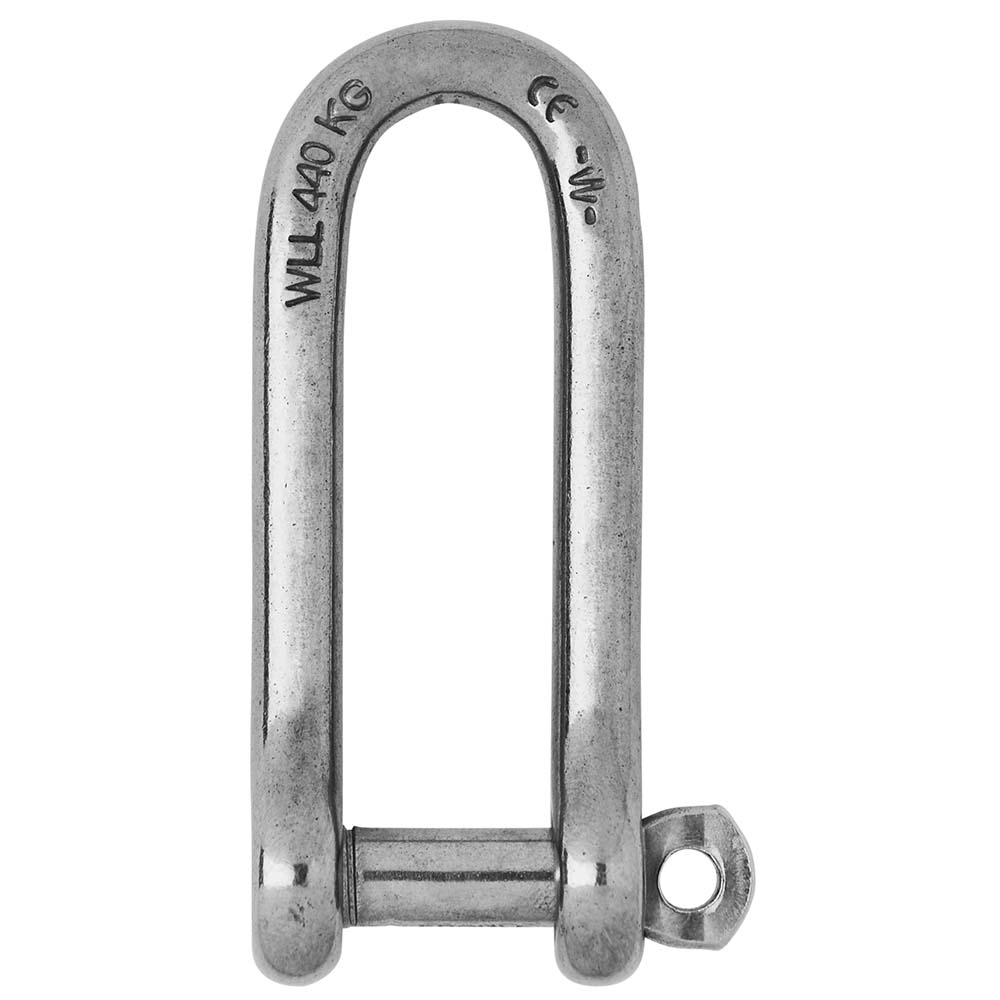

Captive Pin Long D Shackle – Diameter 6mm – 1/4″

Features:

  • Captive pin long “D” shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1490
  • WLL (lb) 970
  • Breaking load (lb) 4850
  • Weight (lb) 0.088

Dimensions (see 2nd image):

  • A (inch) 1-13/16″
  • B (inch) 15/32″
  • C (inch) 9/32″
  • D (inch) 35/64″
  • D diameter (inch) 15/64″
  • E (inch) 15/64″
  • F (inch) 2-31/64″
  • G (inch) 1-17/64″

Additional information

Weight 0.1 lbs
Dimensions 6 × 2 × 1 in
Model Number 01413
UPC 768536014136
