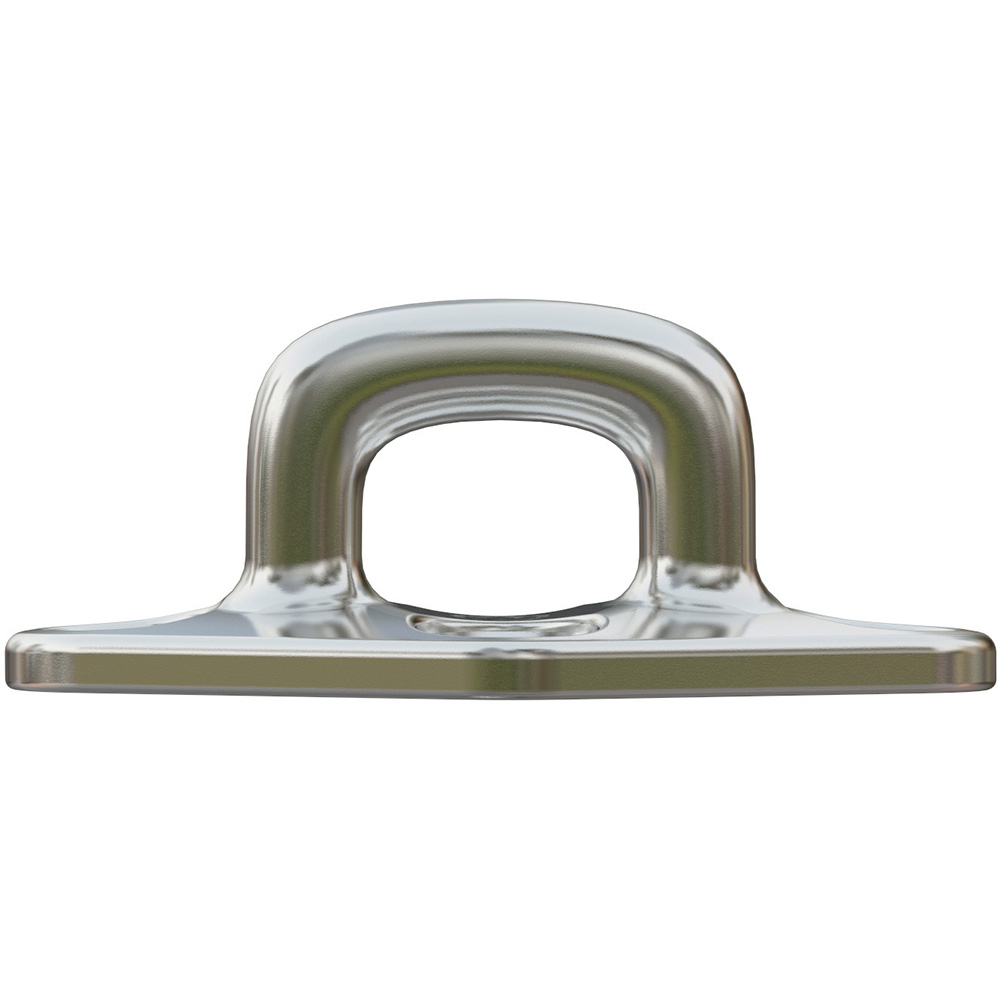

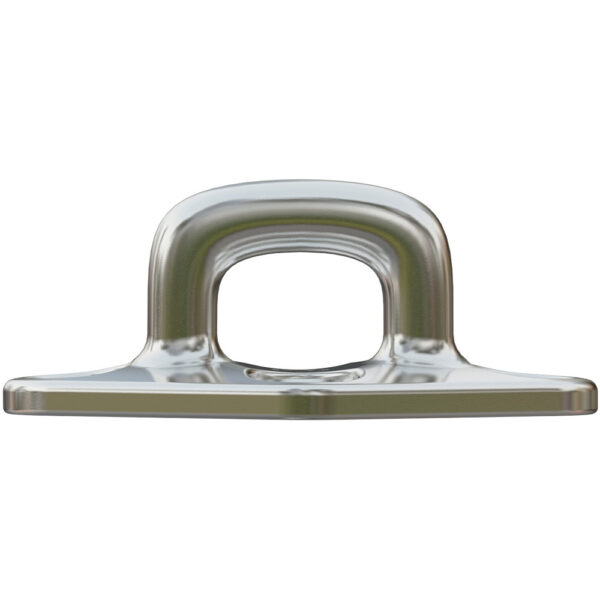

Wichard Diamond Pad Eye – Square – 79mm Length (3-7/64″) – M6 Screw

99740
Wichard Marine

$44.20 $25.06

4 in stock
Qty :
,

Description

Diamond Pad Eye – Square – 79mm Length (3-7/64″) – M6 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 5950 / (kg) 2700
  • Breaking Load: (lb) 16093.7 / (kg) 7300
  • Weight: (lb) 0.32 / (g) 145
  • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
  • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
  • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
  • B.L 1 (90 degrees): (lb) 16093.7 / (kg) 7300
  • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
  • B.L 3 (0 degrees): (lb) 13889.1 / (kg) 6300

Dimensions:

  • A: (inch) 3 7/64″ / (mm) 79
  • B: (inch) 2 23/64″ / (mm) 60
  • C: (inch) 1 31/32″ / (mm) 50
  • D: (inch) 1 17/64″ / (mm) 32
  • E: (inch) 39/64″ / (mm) 15.5
  • F: (inch) 55/64″ / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Weight 0.3 lbs
Dimensions 3 × 2 × 2 in
Model Number 6655
UPC 768536044683
