Description

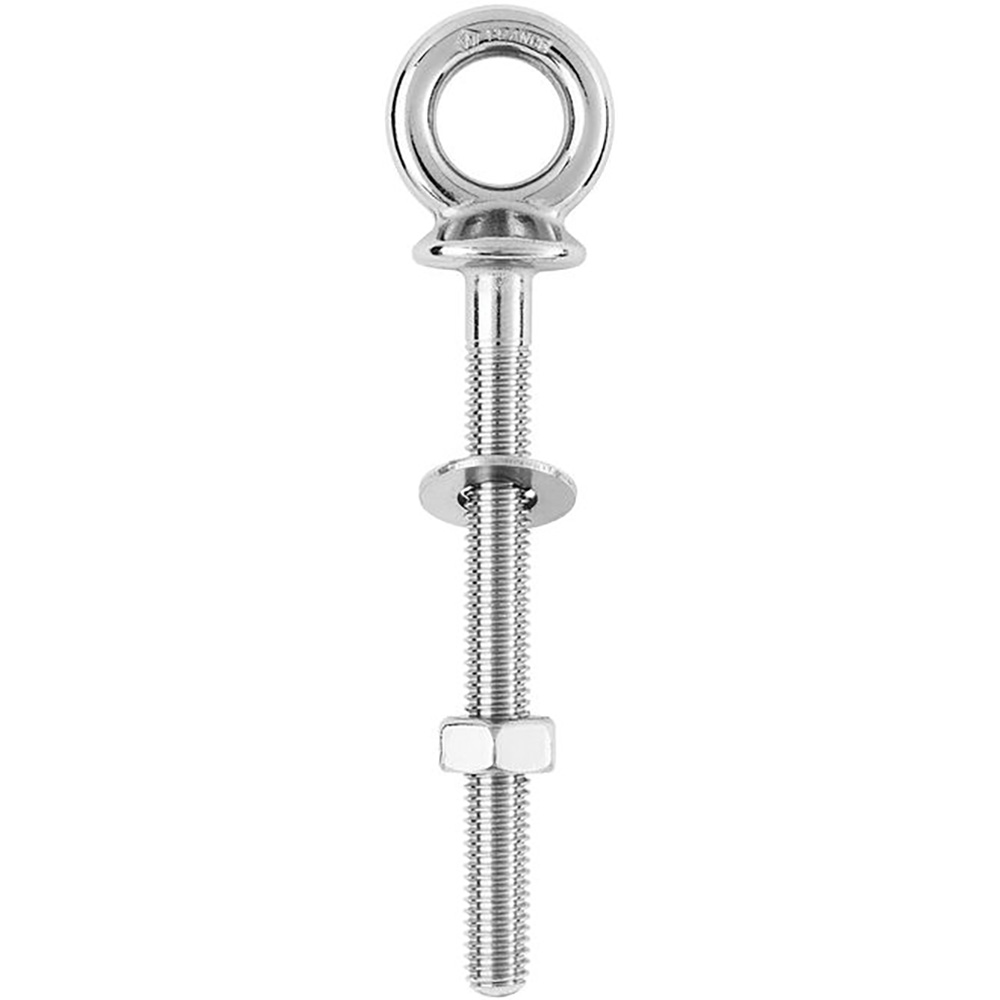

Eye Bolt – M12 x 175mm – Length 120mm
Features:
- A complete range of single piece forged products for fastenings applications
- Outstanding working and breaking loads
- Available in different sizes
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 7710 / (kg) 3500
- Weight: (lb) 0.359 / (g) 163
Dimensions:
- A: (mm) M12 x 175
- B: (inch) 45/64″ / (mm) 18
- C: (inch) 1 39/64″ / (mm) 41
- D: (inch) 5/16″ / (mm) 8
- E: (inch) 1 7/64″ / (mm) 28
- F: (inch) 4 23/32″ / (mm) 120
- G: (inch) 4 9/64″ / (mm) 105
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
