Description

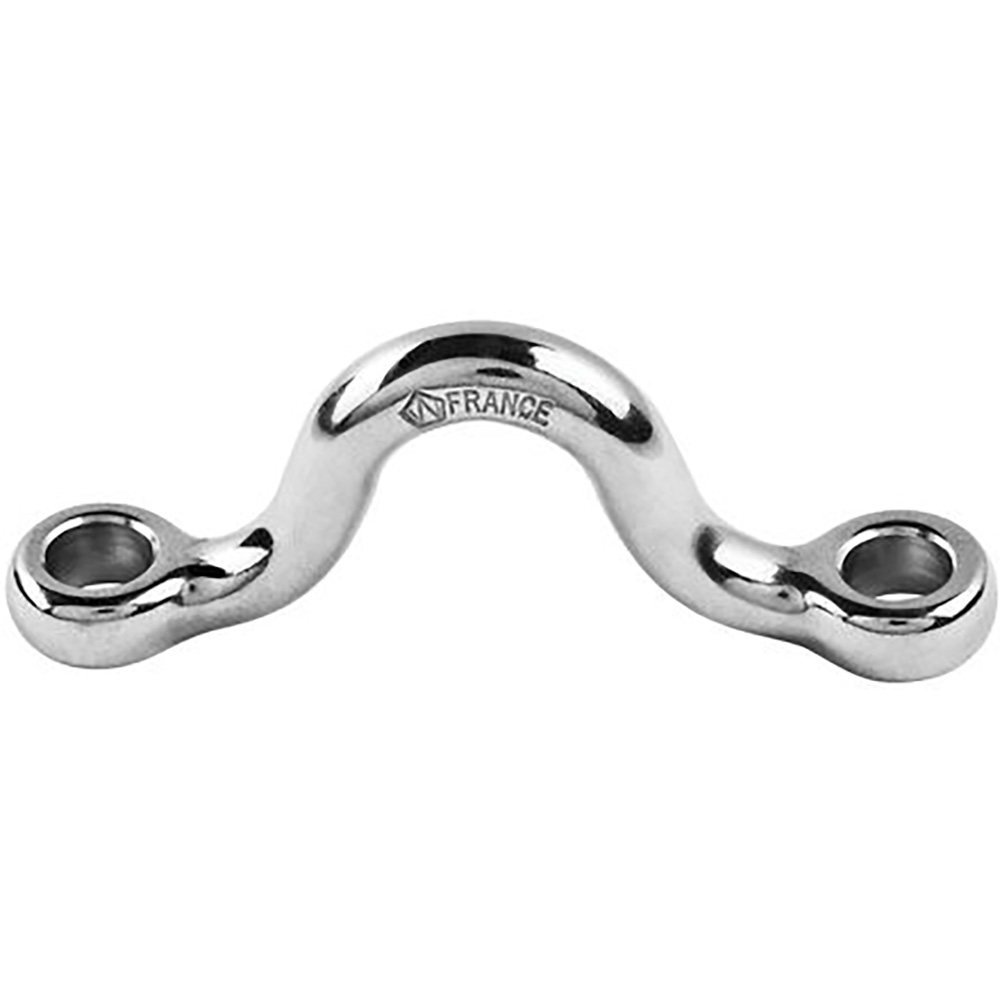

Eye strap – 10mm Diameter – 25/64″ – 78mm Spacing – 3-5/64″
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes…)
Applications:
- Fastening applications
- Attachment of straps & cordage
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.165 / (g) 75
Dimensions:
- A: (inch) 25/32″ / (mm) 20
- B: (inch) 1 1/32″ / (mm) 26
- D diameter: (inch) 25/64″ / (mm) 10
- E: (inch) 3 5/64″ / (mm) 78
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Type = NONE
