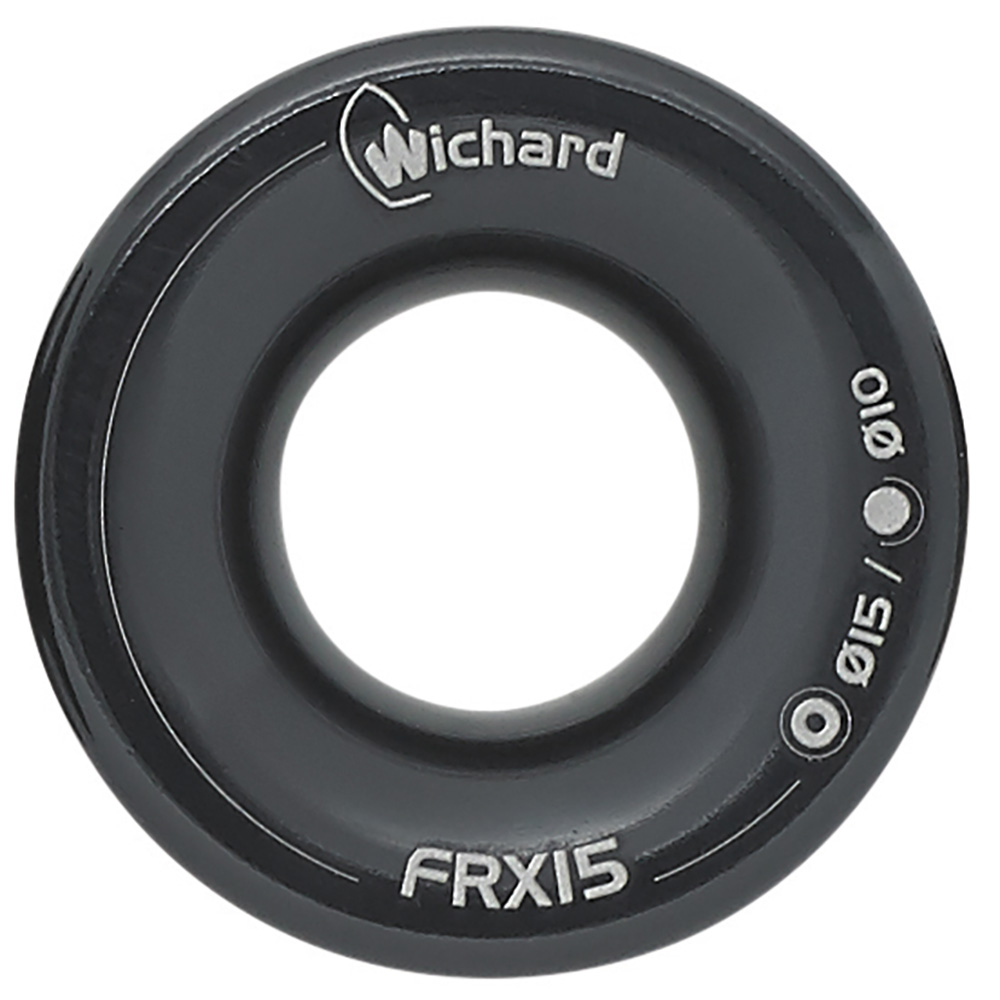

Wichard FRX15 Friction Ring – 15mm (19/32″)

99754
Wichard Marine

$21.84 $12.39

0 in stock
Qty :
,

Description

FRX15 Friction Ring – 15mm (19/32″)

Features:

  • Efficient and light
  • FRX Wichard thimbles are efficient, light, and reliable
  • Very strong and can be used for heavy loads and semi-static lines
  • FRX thimbles are designed to make your lines run smoothly with minimum wear
  • They are hard anodized (50 microns) for a longer lifespan

Applications:

  • Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

  • Materials: Anodized aluminium
  • Working load: (lb) 3520 / (kg) 1600
  • Weight: (lb) 0.026 / (g) 12
  • A: (inch) 25/64″ / (mm) 10
  • B: (inch) 19/32″ / (mm) 15
  • C: (inch) 19/32″ / (mm) 15
  • D diameter: (inch) 1 3/8″ / (mm) 35

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Color = NONE

Additional information

Weight 0.05 lbs
Dimensions 2 × 2 × 1 in
Model Number FRX15 / 21510
UPC 768536031706
