Description

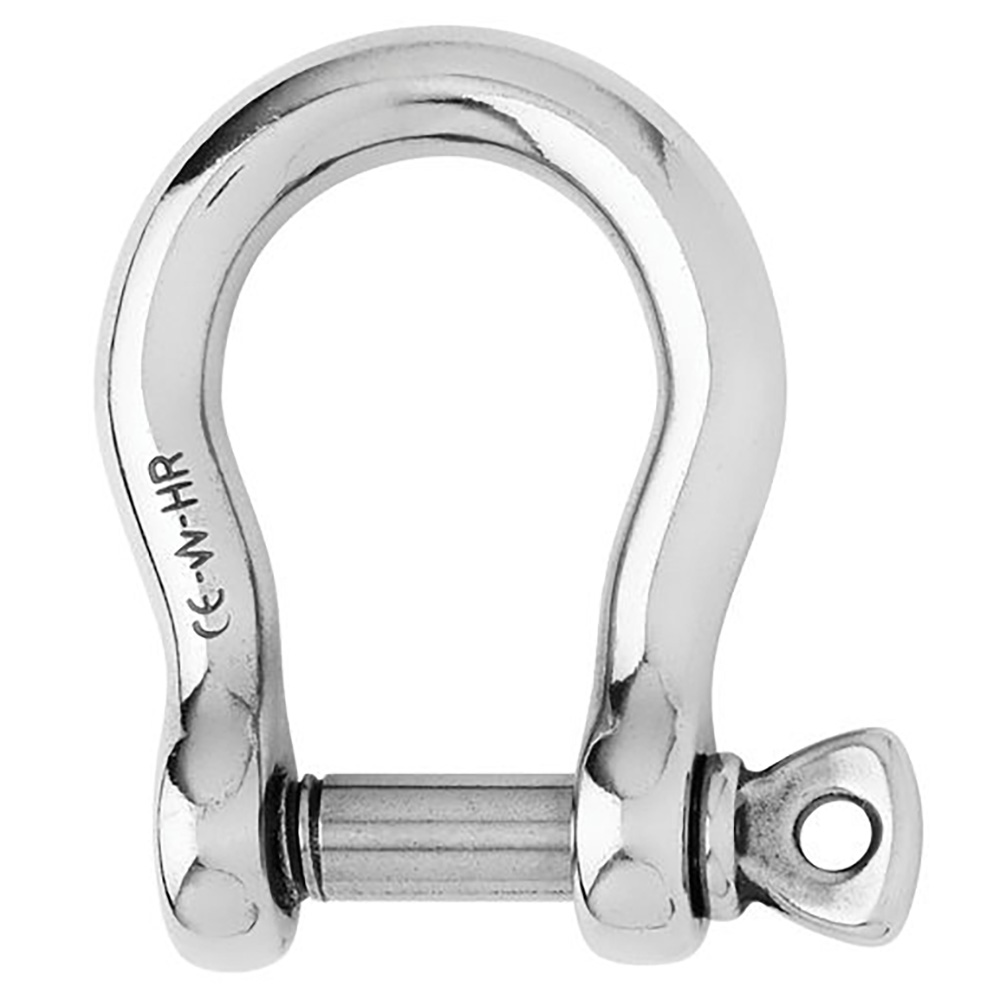

HR Bow Shackle – 16mm Diameter – 5/8″
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 14990 / (kg) 6800
- WLL: (lb) 8370 / (kg) 3800
- Breaking load: (lb) 41880 / (kg) 19000
- Weight: (lb) 1.16 / (g) 526
Dimensions:
- A: (inch) 2 3/4″ / (mm) 70
- B: (inch) 1 17/64″ / (mm) 32
- C: (inch) 5/8″ / (mm) 16
- D: (inch) 1 17/64″ / (mm) 32
- D diameter: (inch) 5/8″ / (mm) 16
- E: (inch) 19/32″ / (mm) 15
- M: (inch) 3 17/64″ / (mm) 83
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
