Description

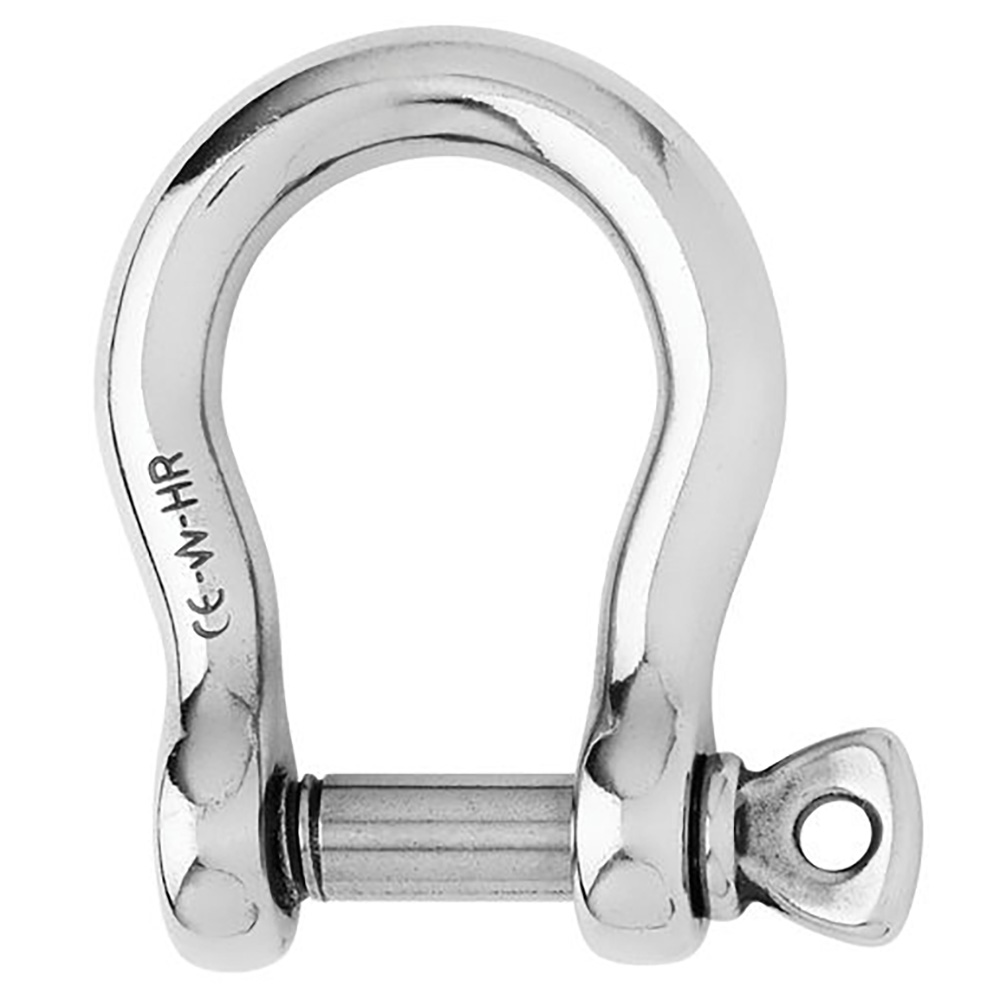

HR Bow Shackle – 20mm Diameter – 25/32″
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 19400 / (kg) 8800
- WLL: (lb) 12340 / (kg) 5600
- Breaking load: (lb) 61720 / (kg) 28000
- Weight: (lb) 2.229 / (kg) 1.011
Dimensions:
- A: (inch) 3 5/32″ / (mm) 80
- B: (inch) 1 37/64″ / (mm) 40
- C: (inch) 25/32″ / (mm) 20
- D: (inch) 1 37/64″ / (mm) 40
- D diameter: (inch) 25/32″ / (mm) 20
- E: (inch) 45/64″ / (mm) 18
- M: (inch) 3 15/16″ / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
