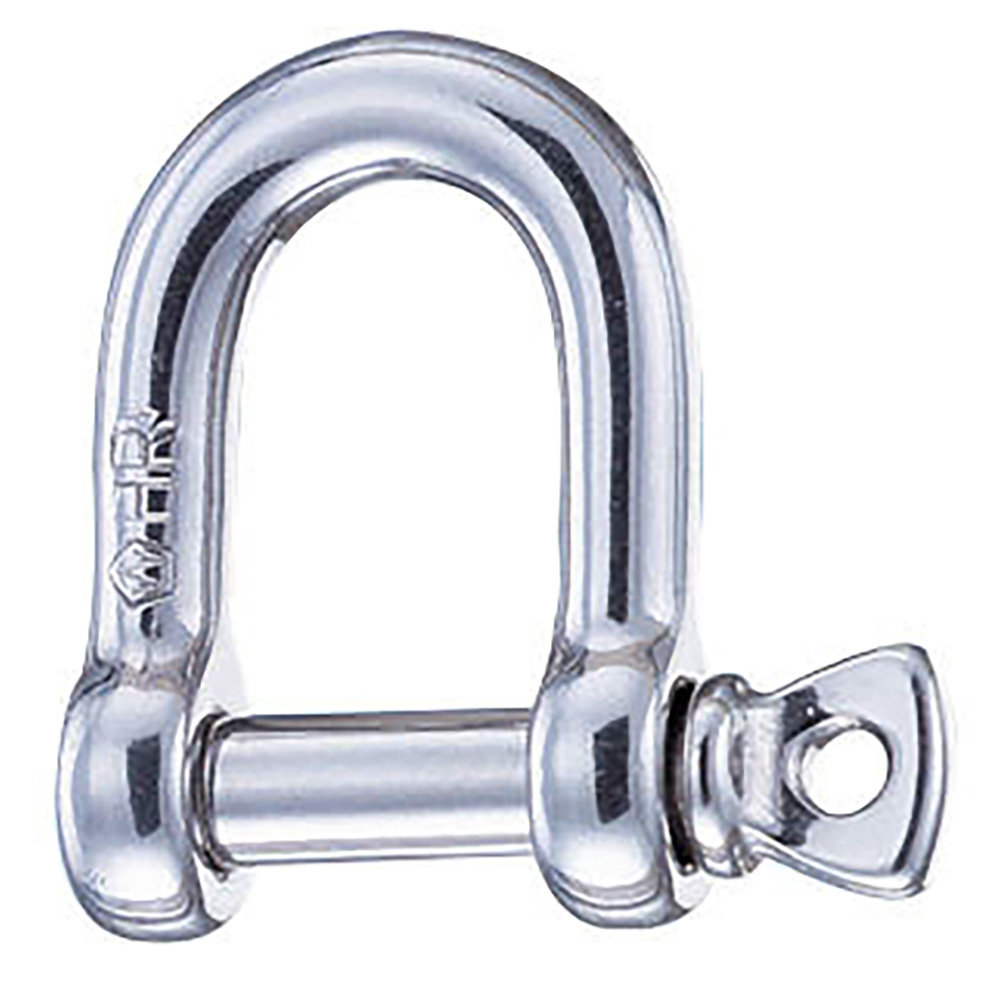

Wichard HR D Shackle – 16mm Diameter – 5/8″

97707
Wichard Marine

$363.80 $206.27

0 in stock
Qty :

Description

HR D Shackle – 16mm Diameter – 5/8″

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 14990 / (kg) 6800
  • WLL: (lb) 8370 / (kg) 3800
  • Breaking load: (lb) 41880 / (kg) 19000
  • Weight: (lb) 1.023 / (g) 464

Dimensions:

  • A: (inch) 2 13/64″ / (mm) 56
  • B: (inch) 1 17/64″ / (mm) 32
  • D diameter: (inch) 5/8″ / (mm) 16

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Additional information

Model Number 11208
