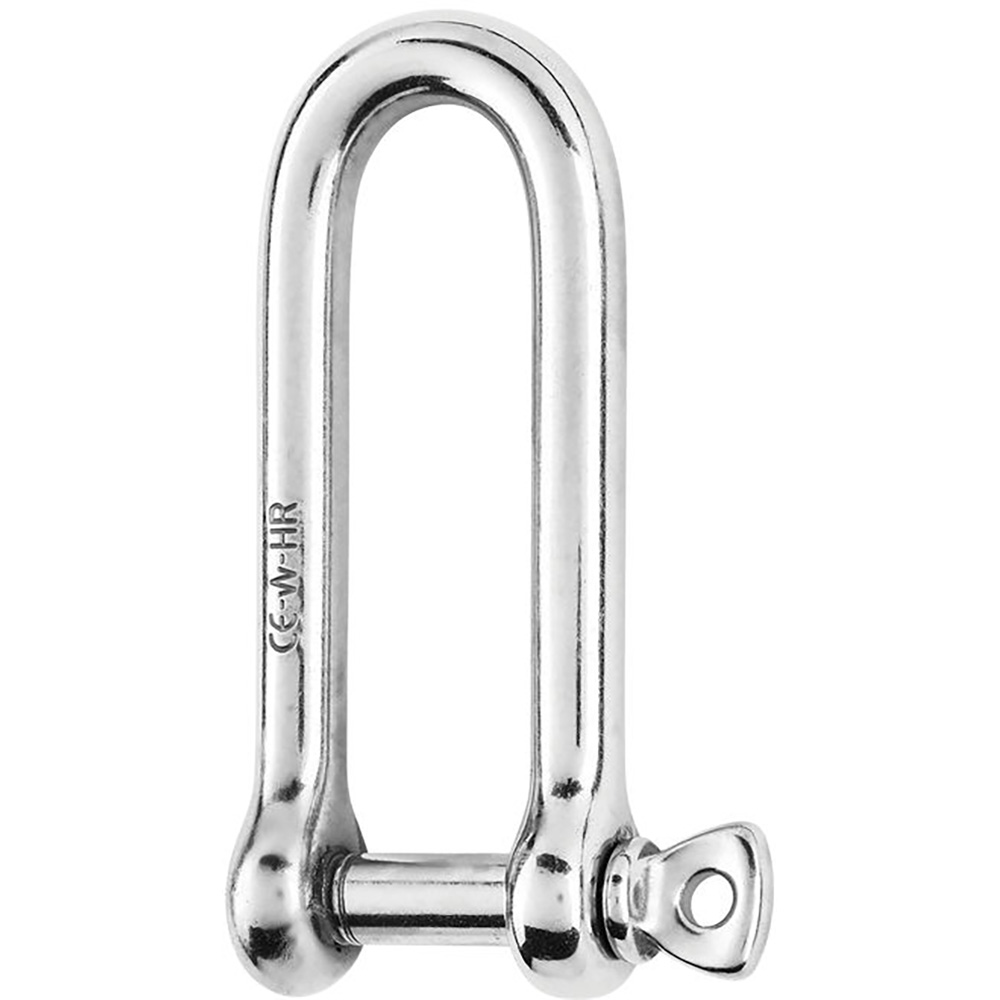

Wichard HR Long D Shackle – 10mm Diameter – 25/64″

97709
Wichard Marine

$150.50 $85.33

0 in stock
Qty :

Description

HR Long D Shackle – 10mm Diameter – 25/64″

Features:

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.362 / (g) 164

Dimensions:

  • A: (inch) 3 5/64″ / (mm) 78
  • B: (inch) 25/32″ / (mm) 20
  • D diameter: (inch) 25/64″ / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Additional information

Weight 0.4 lbs
Dimensions 6 × 2 × 1 in
Model Number 11215
UPC 768536112153
