Description

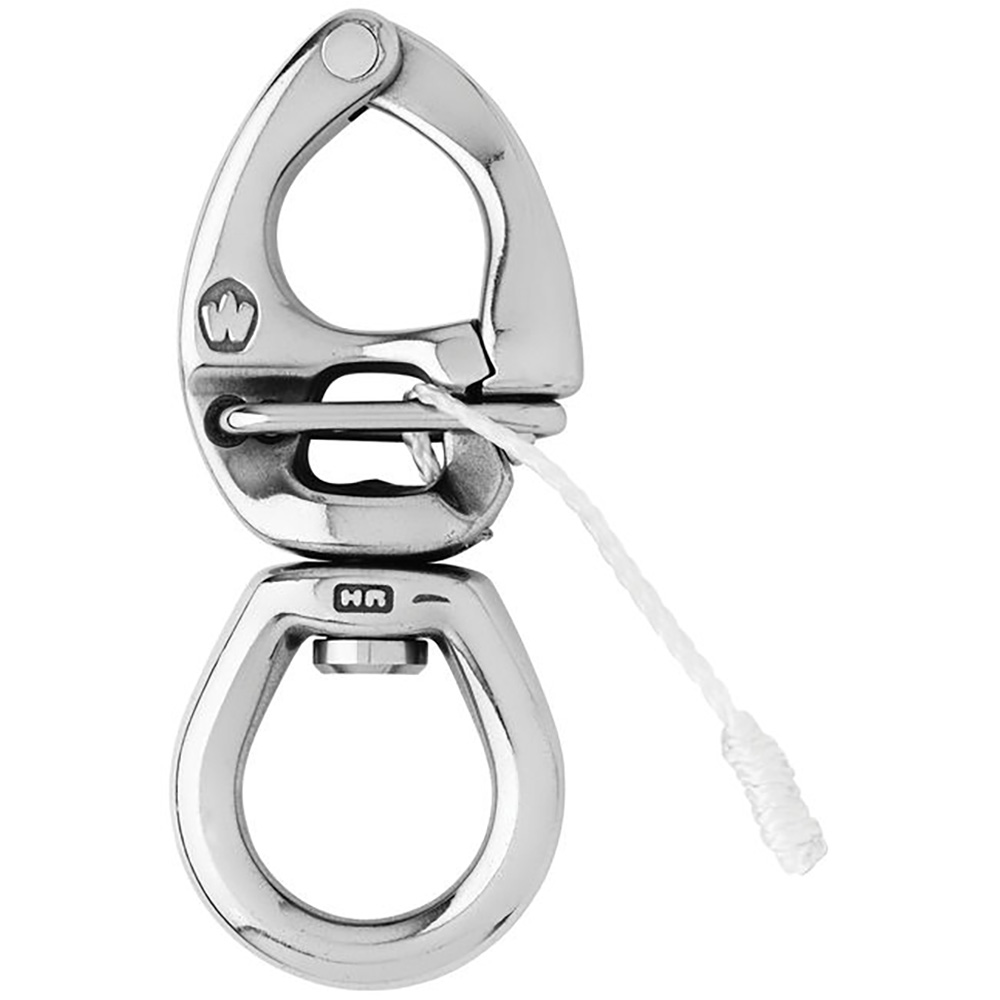

HR Quick Release Snap Shackle With Large Bail – 90mm Length – 3-35/64″
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets…)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets…
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 4400 / (kg) 2000
- Weight: (lb) 0.22 / (g) 100
Dimensions:
- A; (inch) 5/8″ / (mm) 16
- B: (inch) 29/32″ / (mm) 23
- Length: (inch) 3 35/64″ / (mm) 90
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
